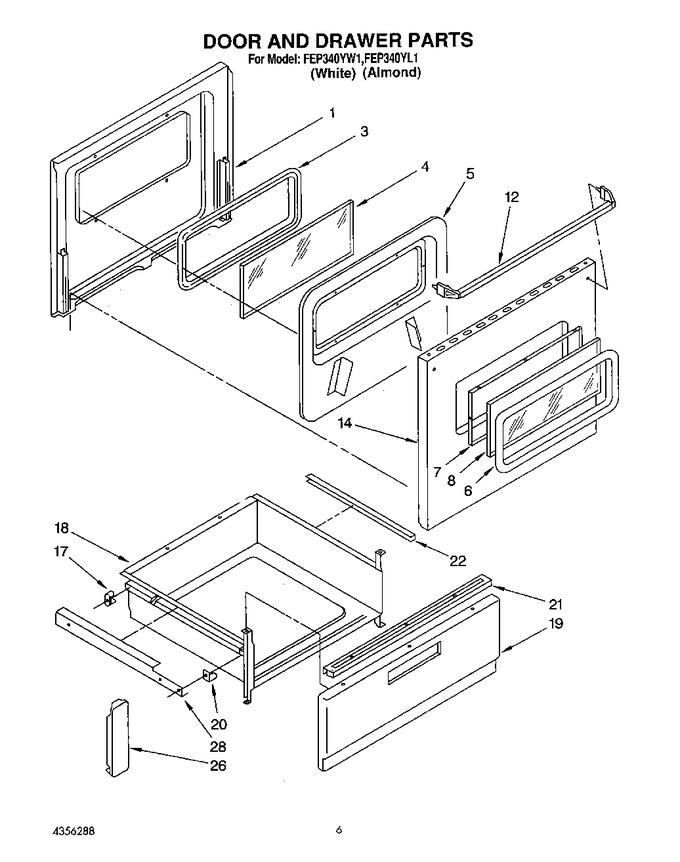

SELECT A DIAGRAM

01 - Cooktop


02 - Control Panel


03 - Oven


04 - Door And Drawer


05 - Wiring Harness, Lit/optional


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3148443		Screw, No.8-18 X 5/16 (6)		Appelez-nous	-
1	3172220		Liner, Door		Appelez-nous	-
3	3148183		Seal, Glass				$ 7.41
4	3169202		Glass, Inner		Appelez-nous	-
5	3148443		Screw, 8-18 X 5/16 (6)		Appelez-nous	-
5	3148287		Retainer,		Appelez-nous	-
6	3149277		Frame, Window				$ 93.12
7	307792		Retainer, Door Glass		Appelez-nous	-
7	313045		Screw (8)		Appelez-nous	-
8	307732		Glass, Outer		Appelez-nous	-
8	307731		Clip (2)		Appelez-nous	-
12	3184128		Handle, Door (white/almond)		Appelez-nous	-
12	3149333		Handle, Door (screw (3))				$ 5.33
12	WP308499		Handle, Door (nut (2))   (Replaces: 3169090)				$ 6.26
14	3149333		Door Panel (screw (2))				$ 5.33
14	307888		Door Panel (white)		Appelez-nous	-
14	307896		Door Panel (almond)		Appelez-nous	-
17	WP488627		Screw, 10a X 1/2 (2)   (Replaces: 313349)				$ 6.81
17	307980		Glide, Rear		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309133		Panel Drawer (screw, 8-18 X 1/2)		Appelez-nous	-
19	307939		Panel, Drawer (almond)		Appelez-nous	-
19	307935		Panel Drawer (white)		Appelez-nous	-
20	307748		Screw, 10a X 1/2 (2)		Appelez-nous	-
20	3149257		Glide, Front (2)		Appelez-nous	-
21	309029		Screw (2) 8a X 1/2		Appelez-nous	-
21	3184530		Handle, Drawer		Appelez-nous	-
22	309329		Protector, Drawer (2)		Appelez-nous	-
26	307981		Bracket, Rail (2)		Appelez-nous	-
28	3149255		Rail, Slide (r.h.)		Appelez-nous	-
28	307748		Rail, Slide (screw (2))		Appelez-nous	-
28	3149256		Rail, Slide (l.h. (includes No. 20))		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
