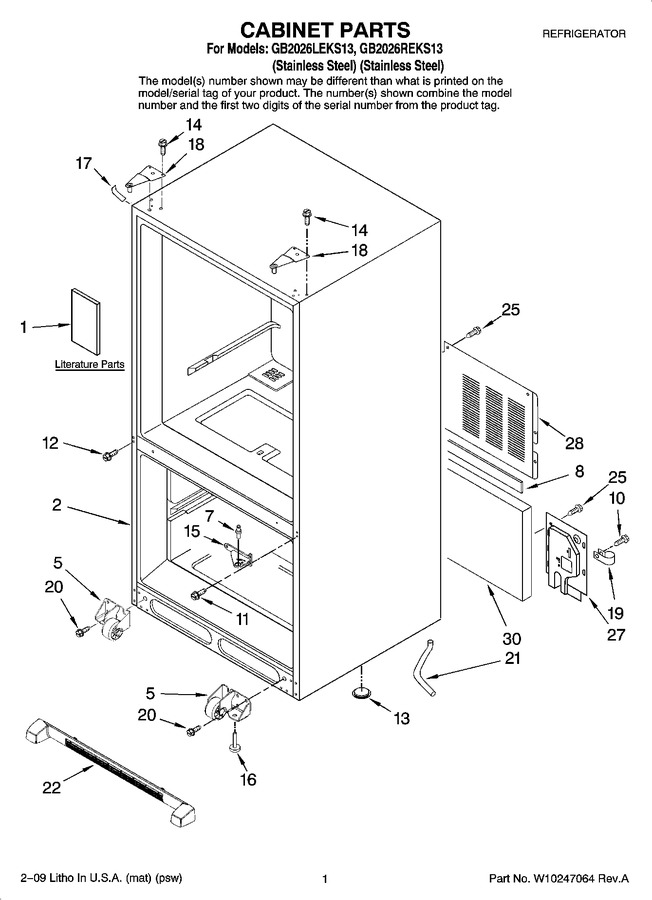

01 - Cabinet Parts


02 - Refrigerator Liner Parts


03 - Freezer Liner Parts


04 - Refrigerator Door Parts


05 - Freezer Door Parts


06 - Unit Parts


07 - Shelf Parts, Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12827958		Tech Sheet		Appelez-nous	-
1	12828189		Owners Manual		Appelez-nous	-
5	W11820444		Roller Foot Assembly (left)   (Replaces: W10130460)			Immediately	$ 33.62
5	W11820445		Roller Foot Assembly (right)   (Replaces: W10130459)			Immediately	$ 33.62
7	WP67006642		Pin, Center Hinge   (Replaces: 67006642)				$ 7.90
8	B5759649		Gasket		Appelez-nous	-
10	WP33001882		Screw   (Replaces: 67006737)				$ 75.34
11	W11573362		Screw (3)   (Replaces: 67006380)				$ 13.25
12	WP98165		Screw   (Replaces: 67006473)				$ 7.71
13	A3076901		Plug-button				$ 5.70
14	WP489349		Screw   (Replaces: 67006303)			Immediately	$ 7.59
15	WP12607104ED		Hinge, Center (black)   (Replaces: 12607103ED)				$ 150.62
16	WPW10141622		Foot Brake   (Replaces: W10141622)			Immediately	$ 7.42
17	67003485		Cover, Corner (black)			Immediately	$ 19.93
18	WP12566606ED		Hinge, Top (left)   (Replaces: 12566604ED)			Immediately	$ 42.42
19	67001067		Clip, Drain Tube				$ 8.69
20	67006564		Screw			Immediately	$ 7.34
21	67001066		Tube, Drain				$ 55.82
22	W10131134		Grille Assembly (includes Clips) (black)				$ 53.25
25	67006425		Screw (10)			Immediately	$ 6.57
27	W10131907		Cover, Water Valve		Appelez-nous	-
28	67002230		Cover, Unit		Appelez-nous	-
30	67003796		Insulation, Sound				$ 19.27
