01 - Cooktop Parts
02 - Control Panel Parts

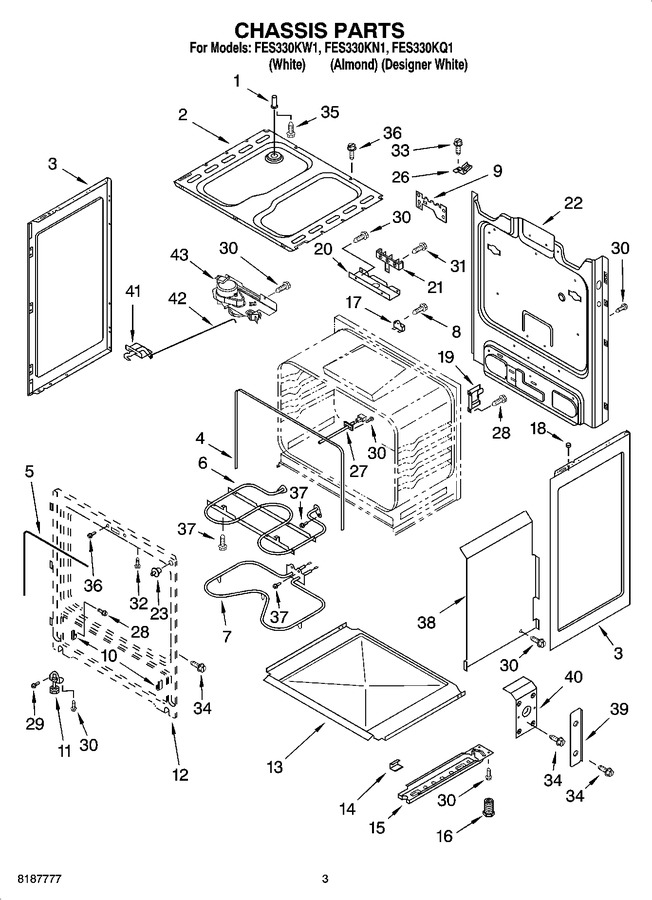

03 - Chassis Parts
04 - Drawer & Broiler Parts
05 - Door Parts, Miscellaneous Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 9755804 | Tube, Vent |
|
$ 111.31 | |||||
| 2 | W11699791 | Box, Burner (Replaces: 3186144) |
|
$ 224.83 | |||||
| 3 | WPW10575396 | Panel, Side (2) (white-textured) (Replaces: 8053830) |
|
$ 133.84 | |||||
| 3 | 8053831 | Panel, Side (2) (almond-textured) |
|
- | |||||
| 4 | 3195737 | Seal, Oven Flange |
|
- | |||||
| 5 | W11542153 | Seal, Oven Door (Replaces: 8522416) |
|
Immediately | $ 45.18 | ||||
| 6 | W10856603 | Element, Broil (Replaces: 8053712) |
|
Immediately | $ 139.16 | ||||
| 7 | WPW10308477 | Element, Bake (Replaces: 8053713) |
|
Immediately | $ 64.67 | ||||
| 8 | 3196172 | Screw |
|
Immediately | $ 11.55 | ||||
| 9 | 9757047 | Suppressor, Trans |
|
- | |||||
| 10 | WP3195546 | Glide, Drawer Front (Replaces: 3195546) |
|
Immediately | $ 7.14 | ||||
| 11 | WP3196037 | Foot, Front (2) (Replaces: 3196037) |
|
$ 74.67 | |||||
| 13 | 8523803 | Tray, Insulation |
|
- | |||||
| 14 | 3196576 | Clip, Panel (6) |
|
- | |||||
| 15 | W11818353 | Rail, Base (2) (Replaces: 8053335) |
|
$ 53.71 | |||||
| 16 | WPW10058460 | Foot, Rear (2) (Replaces: 312701) |
|
Immediately | $ 7.07 | ||||
| 17 | WP3196548 | Thermal, Fuse (Replaces: 3196548) |
|
Immediately | $ 42.94 | ||||
| 18 | 238614 | Bumper, Side (2) (Replaces: 3195809) |
|
$ 72.68 | |||||
| 19 | W10404688 | Support, Oven (2) (Replaces: 3186116) |
|
$ 15.17 | |||||
| 20 | W11763591 | Bracket, Service (Replaces: 3186034) |
|
- | |||||
| 21 | WP9761958 | Block, Terminal (Replaces: 9757136) |
|
Immediately | $ 39.72 | ||||
| 21 | WP112432 | Nut, (3) (Replaces: 112432) |
|
$ 7.16 | |||||
| 22 | 8272922 | Back, Main |
|
- | |||||
| 23 | WP3196262 | Switch, Door (Replaces: 3196262) |
|
$ 141.83 | |||||
| 26 | 3169573 | Strap, Ground |
|
- | |||||
| 27 | WPW10181986 | Sensor, Oven (Replaces: 8273902) |
|
Immediately | $ 96.15 | ||||
| 28 | WP3196175 | Screw (Replaces: 3196165) |
|
Immediately | $ 6.47 | ||||
| 29 | WP98008545 | Screw (Replaces: 3196179) |
|
$ 15.94 | |||||
| 30 | W11233072 | Screw (Replaces: 3196178) |
|
Immediately | $ 12.62 | ||||
| 31 | WP3400016 | Screw (Replaces: 3400016) |
|
$ 7.16 | |||||
| 32 | W11233072 | Screw (Replaces: 3196176) |
|
Immediately | $ 12.62 | ||||
| 33 | W11244557 | Screw (Replaces: 3196173) |
|
$ 12.25 | |||||
| 34 | WP7101P246-60 | Screw (Replaces: 3196177) |
|
$ 6.98 | |||||
| 35 | WP3196567 | Screw (Replaces: 3196567) |
|
$ 6.91 | |||||
| 36 | WP3400832 | Screw (Replaces: 3196168) |
|
Immediately | $ 6.98 | ||||
| 37 | WP3196174 | Screw (Replaces: 3196174) |
|
Immediately | $ 7.04 | ||||
| 38 | 8523803 | Retainer, Side (2) |
|
- | |||||
| 39 | 3196091 | Shield, Outer (2) |
|
- | |||||
| 40 | 3196092 | Shield, Inner (2) |
|
- | |||||
| 41 | WP9761013 | Latch, Door (Replaces: 3196119) |
|
$ 219.74 | |||||
| 42 | 3196961 | Rod, Latch |
|
- | |||||
| 43 | W11311894 | Insulation, Back (Replaces: 8272612) |
|
$ 95.48 | |||||
| 43 | WPW10107820 | Latch-mtr (Replaces: 3196953) |
|
$ 265.33 | |||||
| 43 | N/A | Insulation |
|
- | |||||
| 43 | WPW10208653 | Insulation, Wrap (Replaces: 8272616) |
|
Immediately | $ 49.92 |
