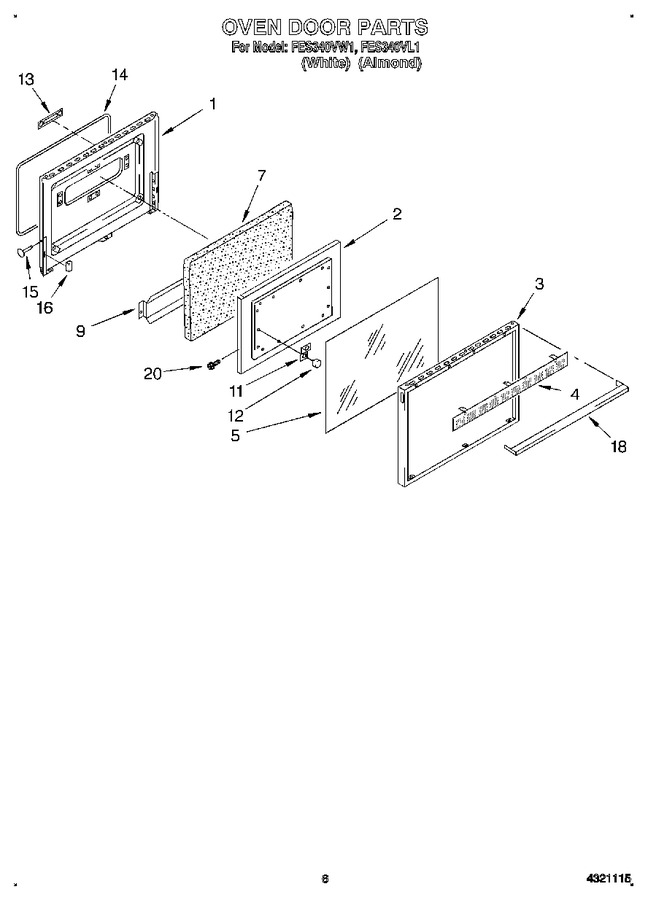

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4320875 | Liner, Oven Door |
|
- | |||||
| 2 | 4320984 | Pad, Oven Door |
|
- | |||||
| 3 | 4320818 | Frame, Oven Door |
|
- | |||||
| 4 | 4320849 | Trim, Door |
|
- | |||||
| 5 | 4320866 | Glass, Door |
|
- | |||||
| 7 | 4315673 | Insulation |
|
- | |||||
| 9 | 4320304 | Shield, Heat |
|
- | |||||
| 11 | 786425 | Bracket, Support |
|
- | |||||
| 12 | 786526 | Bumper, Rubber (4) |
|
- | |||||
| 13 | 786671 | Plate, Latch |
|
- | |||||
| 14 | 4320302 | Gasket, Door |
|
- | |||||
| 15 | 786428 | Pin, Door Hinge |
|
- | |||||
| 16 | 4179237 | Bumper, Rubber (2) |
|
- | |||||
| 18 | 4320802 | Handle, Door |
|
- | |||||
| 20 | WP965173 | Screw, Backer To Pad (Replaces: 4315342) |
|
Immediately | $ 9.65 |
