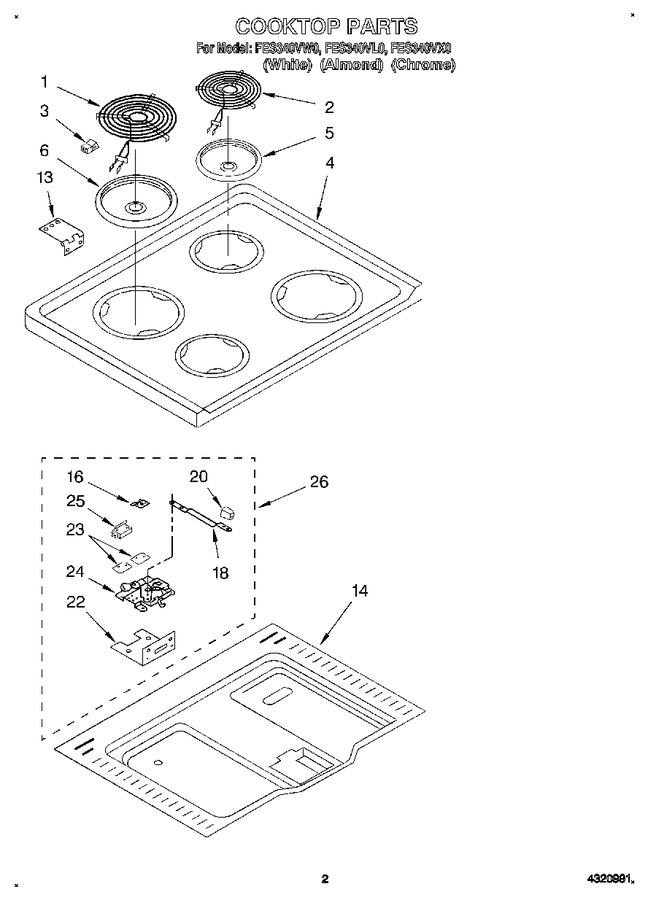

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4320989 | Element, 8`` (2) |
|
- | |||||
| 2 | 4320990 | Element, 6`` (2) |
|
- | |||||
| 3 | 330031 | Receptacle, Element (4) (Replaces: 4363088) |
|
Immediately | $ 14.48 | ||||
| 4 | 4320985 | Cooktop (chrome) |
|
- | |||||
| 4 | 4320822 | Cooktop (almond) |
|
- | |||||
| 4 | 4320821 | Cooktop (white) |
|
- | |||||
| 5 | WPW10196406 | Burner Bowl 6`` (2) (Replaces: 4315101) |
|
Immediately | $ 12.05 | ||||
| 6 | W10196405RW | Burner Bowl 8`` (2) (Replaces: 4320860) |
|
Immediately | $ 18.70 | ||||
| 13 | 4320950 | Hinge, Cooktop (l.h.) |
|
- | |||||
| 13 | 4320949 | Hinge, Cooktop (r.h.) |
|
- | |||||
| 14 | 4320494 | Bottom, Burner Box |
|
- | |||||
| 16 | 786381 | Bracket, Switch |
|
- | |||||
| 18 | 4320835 | Handle, Latch |
|
- | |||||
| 20 | 4320836 | Knob, Latch |
|
- | |||||
| 22 | 4315774 | Bracket, Latch |
|
- | |||||
| 23 | 786380 | Insulator, Switch |
|
- | |||||
| 24 | 4320837 | Latch, Oven Door |
|
- | |||||
| 25 | 786669 | Switch, Latch |
|
- | |||||
| 26 | 4320834 | Latch Assembly (complete) |
|
- |
