01 - Cooktop
02 - Control Panel
03 - Door And Drawer
04 - Unit, Lit/optional
05 - Oven
06 - Harness
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

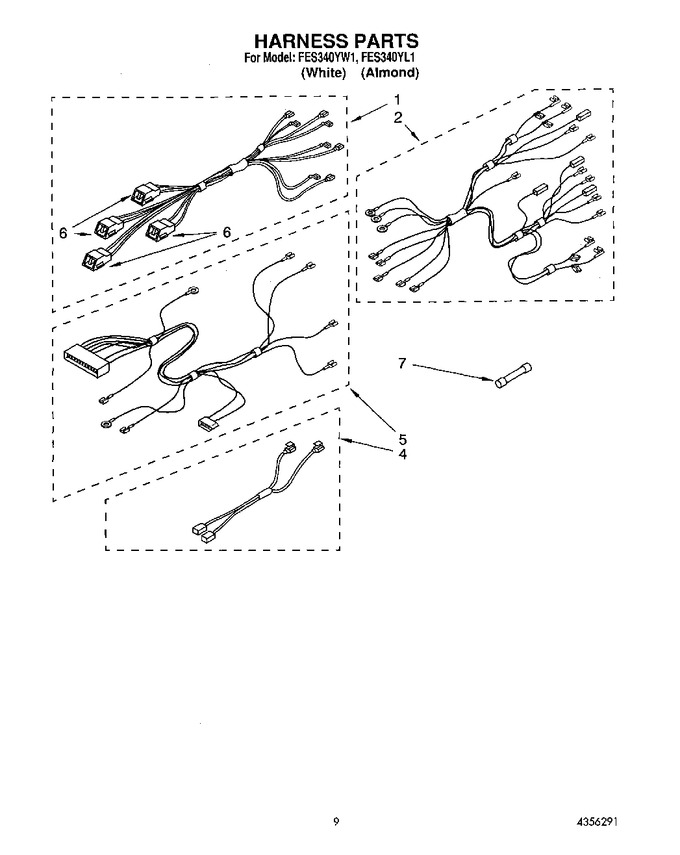

| 1 | 3149881 | Harness, Wire (surface Unit) |
|
- | |||||
| 2 | 3184481 | Harness, Wire (oven) |
|
- | |||||
| 4 | 313154 | Harness, Wire (oven Light) |
|
- | |||||
| 5 | 3184479 | Harness, Wire (lock Switch) |
|
- | |||||
| 6 | 330031 | Receptacle |
|
Immediately | $ 14.48 | ||||
| 6 | 3185059 | Screw 6-32x.28 |
|
- | |||||
| 7 | WP3196548 | Fuse, Thermal (Replaces: 313214) |
|
Immediately | $ 42.94 |
