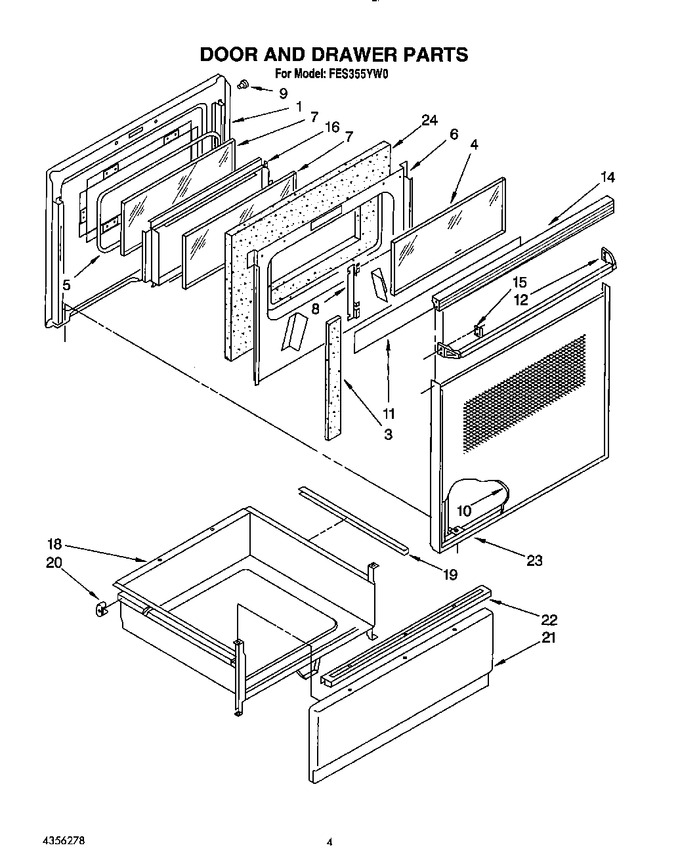

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	247326		Screw, 10-24 X 1/2 (2)		Appelez-nous	-
1	3172218		Liner, Door		Appelez-nous	-
3	3148441		Seal, Fiberglass (2)		Appelez-nous	-
4	3169202		Glass, Clear		Appelez-nous	-
5	3148183		Seal, Window				$ 7.41
6	3148443		Screw (4)		Appelez-nous	-
6	3148159		Retainer, Insulation		Appelez-nous	-
7	WP3169203		Glass, Inside/outside   (Replaces: 3169203)				$ 135.71
8	3148187		Retainer, Glass (2)		Appelez-nous	-
9	3148182		Bumper (4)		Appelez-nous	-
10	3148185		Glass, Panel (black)		Appelez-nous	-
11	3169191		Foil, Door		Appelez-nous	-
12	309133		Handle, Door (screw (4) 8a X 3/8)		Appelez-nous	-
12	3149242		Handle, Door (black)		Appelez-nous	-
14	3149333		Top, Door (screw)				$ 5.33
14	3148223		Top, Door (white-almond)		Appelez-nous	-
15	3148282		Clip, Mtg (2)				$ 8.69
16	3148234		Frame, Inner Glass		Appelez-nous	-
16	3148443		Screw (6)		Appelez-nous	-
18	327887		Drawer, Utility		Appelez-nous	-
19	309329		Protector, Drawer Side (2)		Appelez-nous	-
20	WP488627		Screw, 8-18 X 1/2   (Replaces: 313349)				$ 6.81
20	307980		Glide, Rear (2)		Appelez-nous	-
21	WP488627		Panel, Drawer (screw, 8-18 X 1/2 (3))   (Replaces: 313349)				$ 6.81
21	309923		Panel Drawer (black)		Appelez-nous	-
22	309133		Screw, 8-a X 5/8 (2)		Appelez-nous	-
22	3184530		Handle, Drawer		Appelez-nous	-
23	307748		Screw		Appelez-nous	-
23	3171530		Frame, Door		Appelez-nous	-
24	3147951		Insulation		Appelez-nous	-
