Diagram # Part Number Description Series Availability Ships Price Add to Cart
7 WP74011278 Lens   (Replaces: 4320966) Special Order $ 101.56

7 WP74011278 Socket, Light   (Replaces: 4320965) Special Order $ 101.56

12 4320967 Switch, High Limit Appelez-nous -
14 4320777 Sensor Appelez-nous -
15 4320808 Circuit Board Appelez-nous -
17 786669 Switch, Oven Door Latch Appelez-nous -
19 786380 Insulator, Switch Appelez-nous -
21 WP77001094 Element, Bake   (Replaces: 4315236) In-Stock Immediately $ 39.58

23 4320840 Element, Broil Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

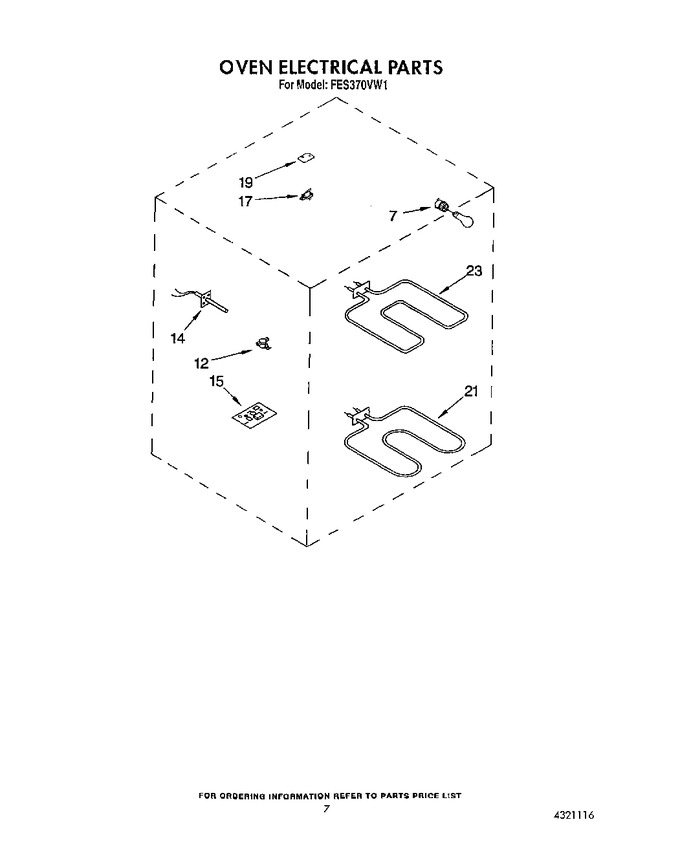

Diagram for FES370VL1
