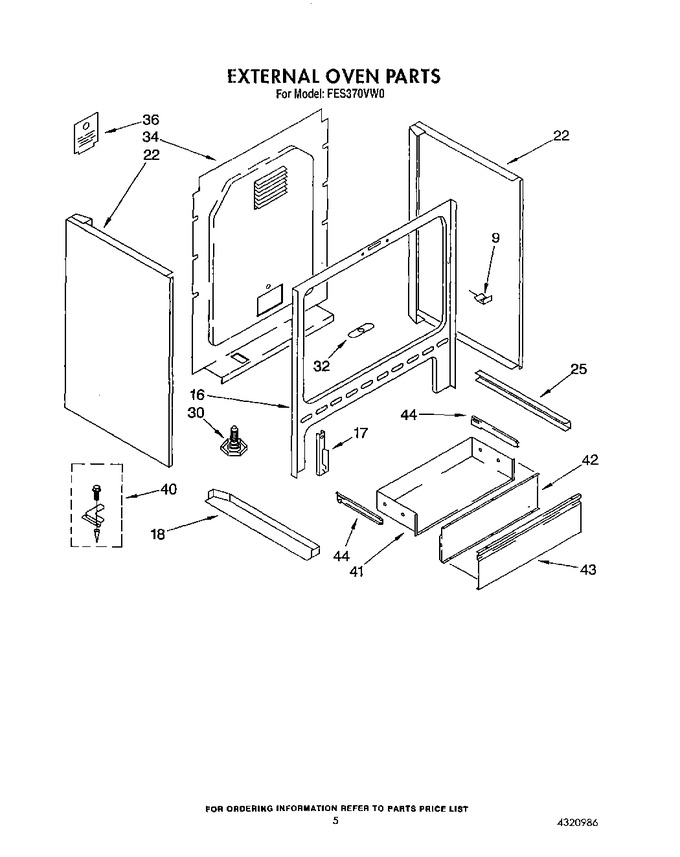

05 - External Oven


06 - Oven Door


07 - Oven Electrical


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
9	4320934		Cover, Chip		Appelez-nous	-
17	4320963		Hinge, Oven Door (r.h.)		Appelez-nous	-
17	786375		Hinge, Oven Door (l.h.)		Appelez-nous	-
18	4315782		Brace, Bottom (l.h.)		Appelez-nous	-
18	4315781		Brace, Bottom (r.h.)		Appelez-nous	-
22	4320901		Panel, Side (white)		Appelez-nous	-
22	4320902		Panel, Side (almond)		Appelez-nous	-
22	4320954		Panel, Side (black)		Appelez-nous	-
25	4315769		Track, Drawer (l.h.)		Appelez-nous	-
25	4315768		Track, Drawer (r.h)		Appelez-nous	-
30	4315777		Leveling Leg		Appelez-nous	-
32	4320523		Plate, Inlet		Appelez-nous	-
34	4320936		Cover, Rear		Appelez-nous	-
36	4320964		Cover, Access		Appelez-nous	-
40	4315756		Anti Tip Kit		Appelez-nous	-
41	4320306		Drawer Assembly		Appelez-nous	-
42	4320307		Liner, Drawer		Appelez-nous	-
43	786521		Panel, Drawer (almond)				$ 45.18
43	786522		Panel, Drawer (white)		Appelez-nous	-
43	4314976		Panel, Drawer (black)		Appelez-nous	-
44	4320308		Runner (l.h.)		Appelez-nous	-
44	4320309		Runner (r.h.)		Appelez-nous	-
