SELECT A DIAGRAM

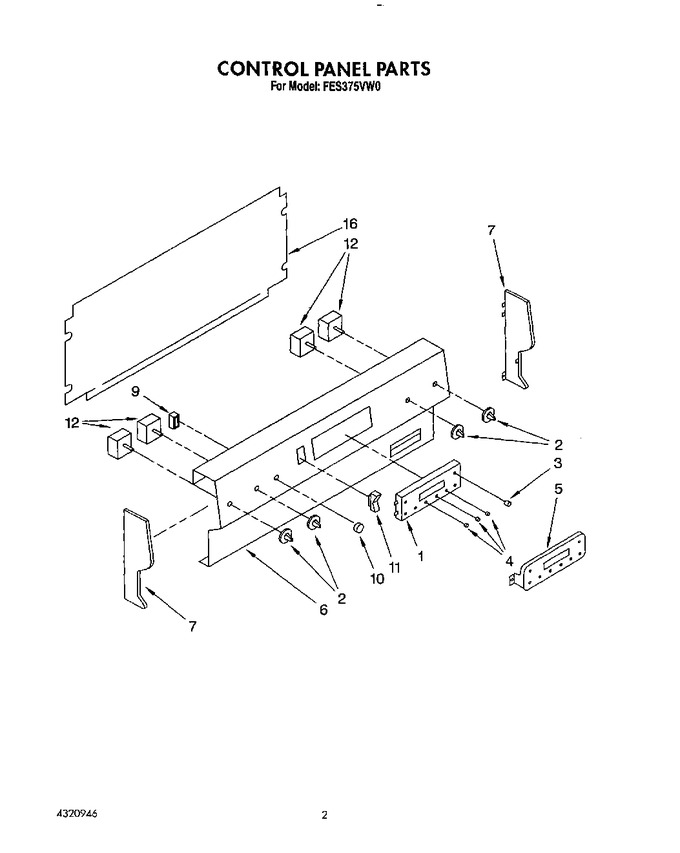

02 - Control Panel, Lit/optional


03 - Cooktop


04 - Internal Oven


05 - External Oven


06 - Oven Door


07 - Oven Electrical


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	4320764		Electric Range Control		Appelez-nous	-
2	4320851		Knob, Top Element (4)		Appelez-nous	-
3	4320916		Knob, Erc		Appelez-nous	-
4	4320917		Set Button (3)		Appelez-nous	-
5	4320852		Glass, Lens		Appelez-nous	-
6	4320938		Control Panel (almond)		Appelez-nous	-
6	4320937		Control Panel (white)		Appelez-nous	-
6	4320939		Control Panel (chrome)		Appelez-nous	-
6	WP308499		Control Panel (pal Nut (2))   (Replaces: 4320554)				$ 6.26
6	WP488729		Control Panel (screw, 8-18 X 1/2 (2))   (Replaces: 4320428)			Immediately	$ 7.01
7	4320744		End Cap (r.h.)		Appelez-nous	-
7	4320745		End Cap (l.h.)		Appelez-nous	-
9	786306		Indicator Light		Appelez-nous	-
10	4315798		Lens, Light		Appelez-nous	-
11	WP4314961		Switch, Oven Light   (Replaces: 4320853)				$ 80.53
12	4315248		Switch, Infinite		Appelez-nous	-
13	4320961		Vent Trim		Appelez-nous	-
14	4315796		Support, Backguard (r.h.)		Appelez-nous	-
14	4315795		Support, Backguard (l.h.)		Appelez-nous	-
16	4320832		Cover Plate, Rear		Appelez-nous	-
	LIT4320946		Repair Parts List		Appelez-nous	-
	LIT4315757		Installation Guide		Appelez-nous	-
	LIT4320354		Use & Care Manual		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
