02 - Control Panel, Lit/optional

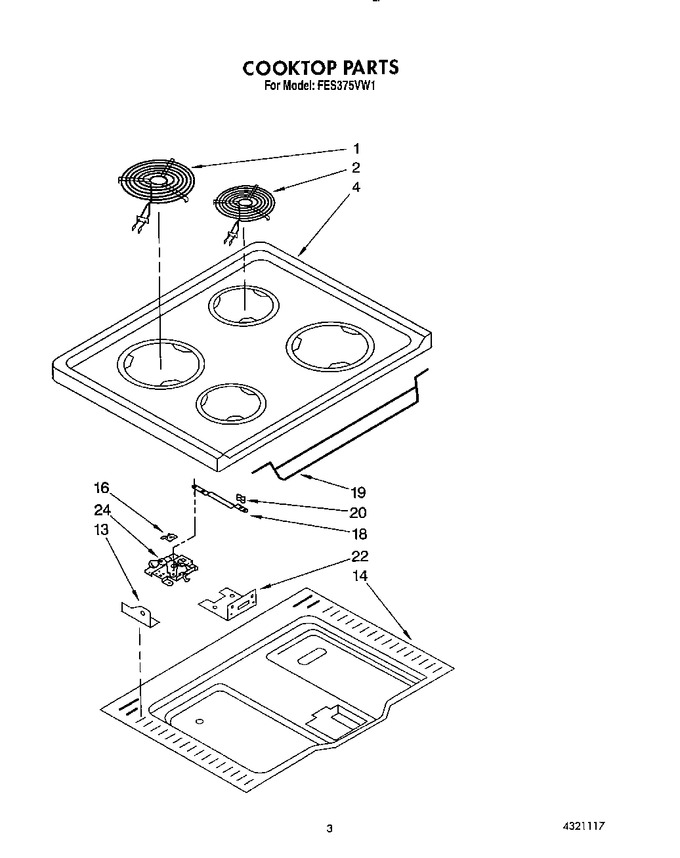

03 - Cooktop
04 - Internal Oven
05 - External Oven
06 - Oven Door
07 - Oven Electrical
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP3147132 | Element 8`` (Replaces: 786713) |
|
$ 272.69 | |||||
| 2 | WP3147131 | Element, 6`` Lt Front-rt Rear (Replaces: 786712) |
|
$ 244.76 | |||||
| 4 | 4320842 | Cooktop (white) |
|
- | |||||
| 4 | 4320843 | Cooktop (almond) |
|
- | |||||
| 4 | 4320844 | Cooktop (chrome) |
|
- | |||||
| 13 | 4320949 | Hinge, Cooktop (r.h.) |
|
- | |||||
| 13 | 4320950 | Hinge, Cooktop (l.h.) |
|
- | |||||
| 14 | 4320494 | Bottom, Burner Box |
|
- | |||||
| 16 | 4320493 | Cover, Switch |
|
- | |||||
| 18 | WP4314961 | Latch Arm (Replaces: 4320853) |
|
$ 80.53 | |||||
| 19 | 4320674 | Brace, Element |
|
- | |||||
| 20 | 4320836 | Knob |
|
- | |||||
| 22 | 4315774 | Bracket |
|
- | |||||
| 24 | 4320837 | Latch, Oven Door |
|
- |
