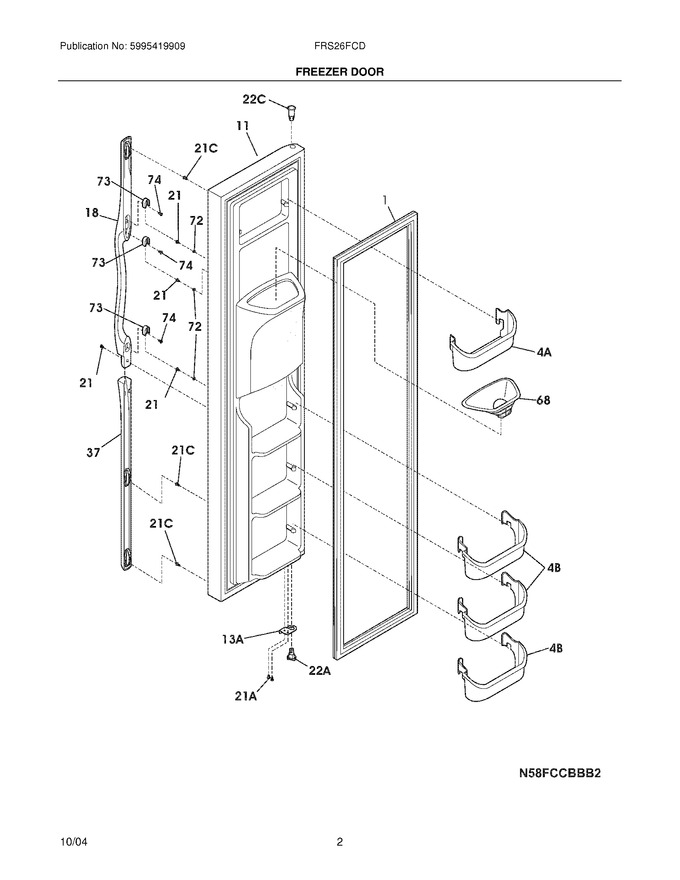

03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
11	240451814		Panel-frzr Door,black ,complete Assy		Appelez-nous	-
18	240359108		Handle-door,black ,lh		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
37	240359203		Trim-handle`30.13`` ,black ,lower		Appelez-nous	-
68	241525101		Chute-ice				$ 82.25
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
13A	5303918455		Door Stop,black,frzr   (Replaces: 240537106)				$ 142.04
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21C	240521302		Screw,no.8-18 X 3/4				$ 8.19
22A	242000502		Bearing-hinge(frz),black ,closer   (Replaces: 240328204)				$ 7.18
22C	240328404		Bearing-hinge,black ,upper				$ 22.87
4A	240334201		Bin-door,frzr-upper				$ 67.21
4B	240351601		Bin-door			Immediately	$ 58.73
F1	241786014		Gasket-frzr Door,black ,magnetic   (Replaces: 240390606)				$ 95.17
NI	240545201		Connector-water,straight   (Replaces: 240352102)				$ 73.71
NI	5304521763		Harness-wiring,door   (Replaces: 240552101)				$ 85.69
NI	5303918256		Dispenser Heater Kit				$ 474.16
