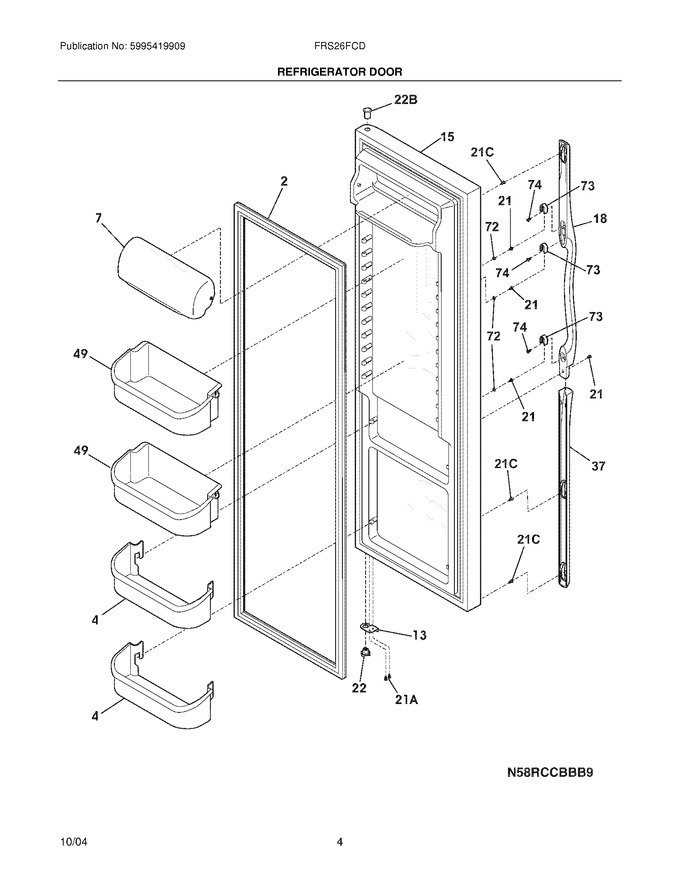

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	5303918455		Door Stop,bisque,ref   (Replaces: 240537103)				$ 142.04
15	240451904		Panel-refr Door,bisque ,complete Assy		Appelez-nous	-
18	240359104		Handle-door,bisque		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22	240328201		Bearing-hinge(ref),closer			Immediately	$ 17.72
37	240359204		Trim-handle,30.13`` ,bisque ,lower				$ 33.44
49	240356401		Bin-door,gallon			Immediately	$ 85.64
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21C	240521302		Screw,no.8-18 X 3/4				$ 8.19
22B	240328401		Bearing-hinge(ref),natural ,upper				$ 12.97
F2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 240390601)				$ 95.90
