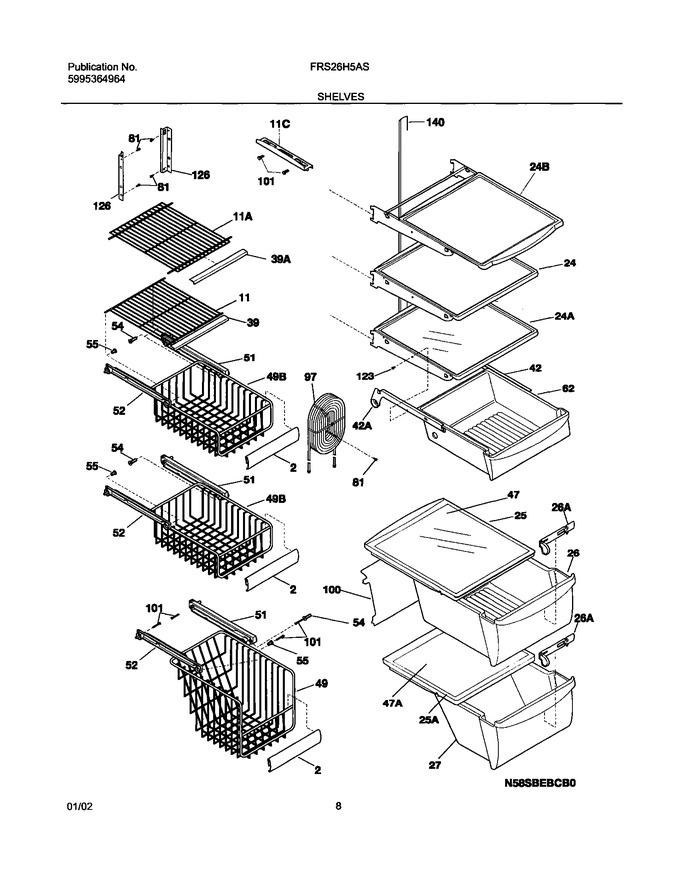

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	240434602		Trim-basket		Appelez-nous	-
11	240338802		Shelf-freezer,flip-up		Appelez-nous	-
24	240355270		Shelf-``spill-safe``,fixed   (Replaces: 240355208)				$ 170.63
25	240350702		Cover-crisper Pan,upper   (Replaces: 240350701)			Immediately	$ 41.92
26	240351061		Pan-crisper,upper   (Replaces: 240351005)			Immediately	$ 110.01
27	240351240		Pan-crisper,lower   (Replaces: 240351205)				$ 203.45
39	240430706		Trim-shelf,11.21`` ,front				$ 81.85
42	240356501		Hanger-meat Pan,rh			Immediately	$ 56.70
47	240350649		Insert-pan Cover,glass   (Replaces: 240350633)			Immediately	$ 123.89
49	240338402		Basket-sliding		Appelez-nous	-
51	240343002		Hanger-basket,rh				$ 65.22
52	240343102		Hanger-basket,lh				$ 69.77
54	240351901		Plug-hanger,right Hand		Appelez-nous	-
55	240352001		Plug-hanger,left Hand		Appelez-nous	-
62	240342830		Pan-meat   (Replaces: 240342805)				$ 85.99
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
97	240545302		Water Tank Assy,coiled Tubing ,front Filter   (Replaces: 240453003)				$ 280.67
100	240326304		Cover-water Tank   (Replaces: 240326302)				$ 73.57
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
123	215005101		Screw-roller/hanger`8-10 X 0.438   (Replaces: 215005100)				$ 14.89
126	218867402		Channel`auger Mtg ,rh		Appelez-nous	-
126	218867401		Channel,auger Mtg ,lh		Appelez-nous	-
140	240430501		Channel,water Tube Cvr				$ 97.81
11A	240338704		Shelf-freezer,fixed Wire		Appelez-nous	-
11C	240324101		Shelf-pizza				$ 59.91
24A	240355203		Shelf-``spill-safe``,cantilever ,half Width,fixed   (Replaces: 240355207)				$ 379.94
24B	240350150		Shelf-``spill-safe``,cantilever ,sliding   (Replaces: 240350108)				$ 176.70
25A	240350903		Cover-crisper Pan,lower   (Replaces: 240350901)			Immediately	$ 91.99
26A	240362201		Control-humidity				$ 69.46
39A	240430702		Trim-shelf,12.39`` ,front				$ 21.89
42A	240356702		Seal-meat Pan		Appelez-nous	-
42A	240350001		· Spring-meat Pan Rail				$ 76.55
42A	240349901		Block-meat Pan Rail,lh				$ 67.01
42A	240349701		Hanger-meat Pan,lh			Immediately	$ 58.12
47A	240350603		Insert-pan Cover,glass			Immediately	$ 115.52
49B	240338502		Basket-sliding,upper ,half		Appelez-nous	-
NI	240362101		Clip-slide,cover-crisper				$ 47.03
NI	240349801		Clip-slide,pan-crisper				$ 20.48
