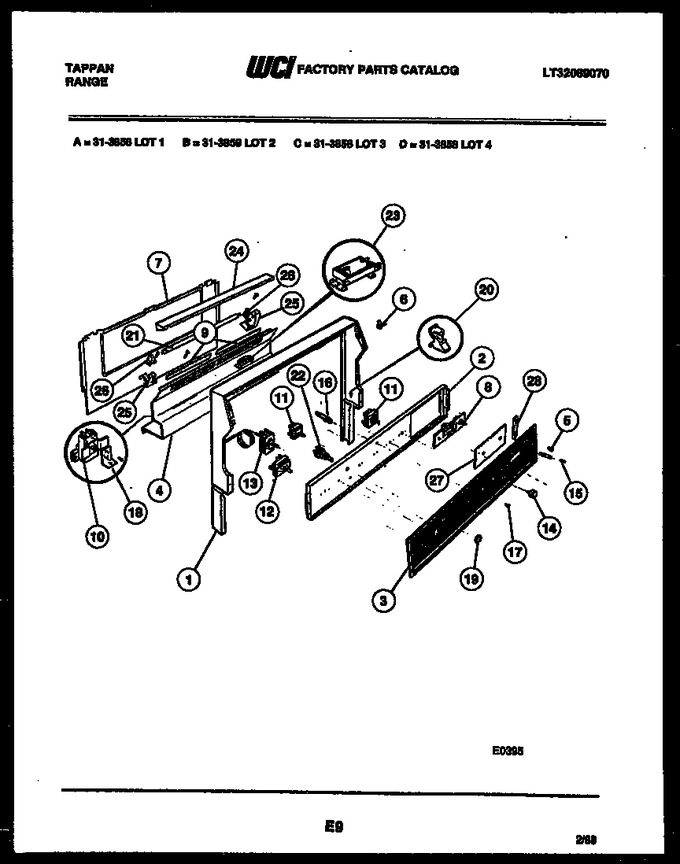

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	3131436		Trim Wrapper		Appelez-nous	-
2	3051219		Plate-inst Mtg		Appelez-nous	-
3	3201827		Panel-control		Appelez-nous	-
4	3051864		Trim-lower Splasher		Appelez-nous	-
5	3051194		Nut - Decor (2)		Appelez-nous	-
6	241T049P01		Fastener-glass (2)		Appelez-nous	-
7	3131123		Shield, Rear Wall		Appelez-nous	-
8	3131146		Clock		Appelez-nous	-
9	3131145		Glass, Work Light (2)		Appelez-nous	-
10	3051324		Thermostat-s/c		Appelez-nous	-
11	699T015P02		Switch, Top (4)		Appelez-nous	-
12	3201732		Switch-selector		Appelez-nous	-
13	3201733		Thermostat		Appelez-nous	-
14	3201797		Knob-thermostat		Appelez-nous	-
14	3051487		Knob, Top Element (4)		Appelez-nous	-
14	3201798		Knob-selector		Appelez-nous	-
15	358T201P01		Knob, Clock (3)		Appelez-nous	-
16	3201727		Indicator Lt. Oven-black		Appelez-nous	-
16	318T023P11		Indicator Light		Appelez-nous	-
16	3201726		Indicator Lt. Oven-blue		Appelez-nous	-
16	3201728		Indicator Lt. Oven-red		Appelez-nous	-
17	342T014P01		Jewel-ind Lens (2)		Appelez-nous	-
18	3131467		Angle-s/c Therm. Mtg		Appelez-nous	-
19	045T071P01		Bezel, Switch		Appelez-nous	-
20	3131237		Support-backguard (2)		Appelez-nous	-
21	3131275		Bulb-fluor				$ 49.40
22	3051312		Switch - Fluor Light		Appelez-nous	-
23	3051115		Ballast		Appelez-nous	-
24	3201738		Shield-fluor Light		Appelez-nous	-
25	3131577		Bracket-fluor Light Mtg Rh		Appelez-nous	-
25	3131576		Bracket-fluor Light Mtg Lh		Appelez-nous	-
26	3051222		Receptacle - Fluor Light Lh		Appelez-nous	-
26	3051223		Receptacle - Fluor Light Rh		Appelez-nous	-
27	3051159		Glass-timer		Appelez-nous	-
28	612T123F01		Retainer-clock Glass (2)		Appelez-nous	-
17A	3051224		Retainer-lens (2) (non-illustrated)		Appelez-nous	-
