Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316015701 Shield-backguard, Rear Wall Appelez-nous -
2 316015901 Shield-backguard, Inner Appelez-nous -
15 316023102 Channel-support, Backguard Rh Appelez-nous -
18 316021800 Cap-end-rh Special Order $ 81.32

19 316014704 Panel-control, Metal Appelez-nous -
20 316037000 Clock/timer, Eoc Appelez-nous -
21 316014801 Trim-backguard, Top Appelez-nous -
23 316015003 Bracket-mounting, Clock/timer/eoc Appelez-nous -
24 5303208662 Switch-oven Light, Rocker Appelez-nous -
28 316015102 Push Button, Black, Clock/timer/eoc Special Order $ 50.35

36 316015200 Knob-control Appelez-nous -
40 5303272324 Panel-manifold Appelez-nous -
46 316040200 Lens-light/lamp, Indicator, Amber Appelez-nous -
54 5303935086 Switch-6`` Element   (Replaces: 316021500) In-Stock Immediately $ 51.95

14B 316022502 Light/lamp, Indicator, 250 V Appelez-nous -
15A 316023103 Channel-support, Backguard Lh Appelez-nous -
18A 316021801 Cap-end-lh Special Order $ 94.29

28A 316036900 Shaft-push Button, Clock/timer/eoc, (11) Special Order $ 11.24

54A 316436001 Switch-8`` Element   (Replaces: 316021501) In-Stock Immediately $ 51.68


    View Diagram in Separate Window     Print Icon   Print Part List

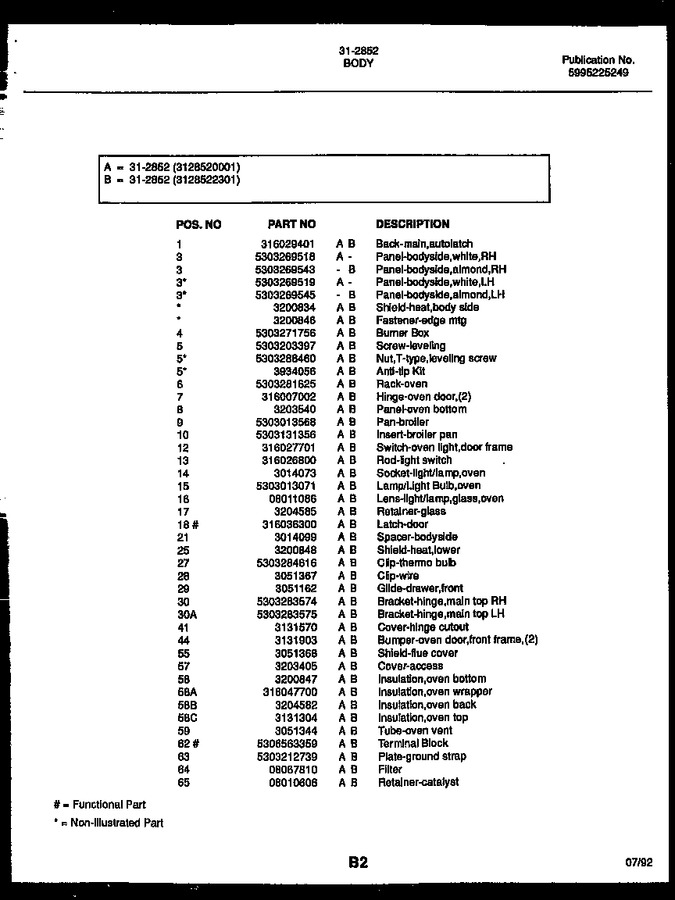

Diagram for 31-3962-00-01
