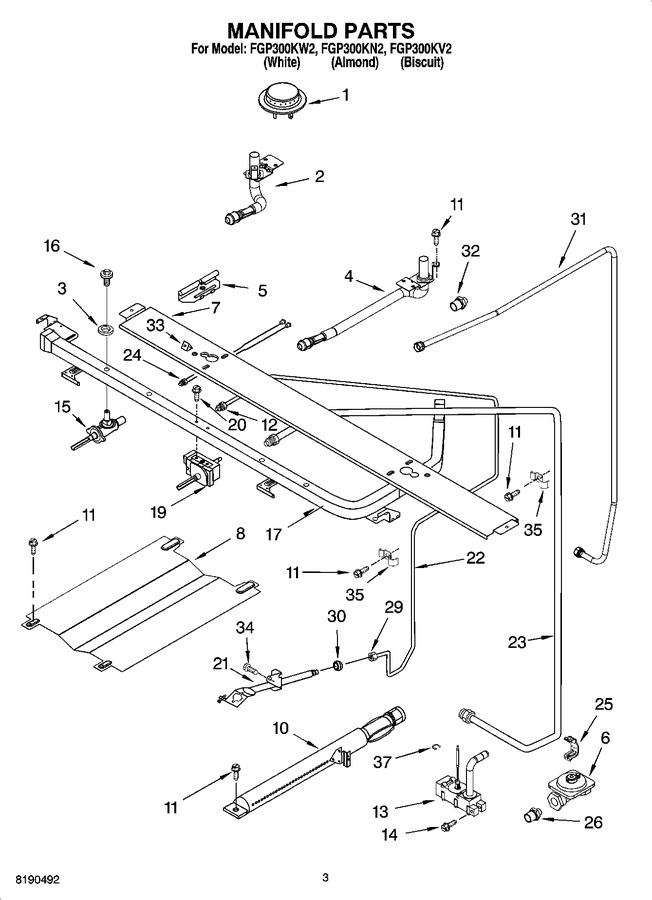

03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts, Miscellaneous Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	8190039		Burner, Top (4)   (Replaces: 98013629)		Appelez-nous	-
2	98013308		Venturi, Front (2)		Appelez-nous	-
3	98007132		Washer, Valve (4)		Appelez-nous	-
4	98013309		Venturi, Rear (2)		Appelez-nous	-
5	98011928		Tube, Flash (2)		Appelez-nous	-
6	98007462		Regulator		Appelez-nous	-
7	98011927		Support, Burner		Appelez-nous	-
8	98011924		Spreader, Flame		Appelez-nous	-
9	W11233072		Screw   (Replaces: 98006632)			Immediately	$ 12.62
10	98004315		Burner, Oven		Appelez-nous	-
11	W10837731		Screw   (Replaces: 98006633)				$ 7.07
12	98005514		Fitting, Tube		Appelez-nous	-
13	98007444		Valve, Oven		Appelez-nous	-
14	98011272		Screw		Appelez-nous	-
15	6610342		Valve, Burner (4)		Appelez-nous	-
16	W11428245		Bolt, Valve Mtg   (Replaces: 98005521)		Appelez-nous	-
17	98013575		Pipe, Manifold		Appelez-nous	-
19	98003983		Thermostat		Appelez-nous	-
20	98005662		Bolt, T-stat (2)		Appelez-nous	-
21	98004302		Pilot, Oven		Appelez-nous	-
22	WP98004310		Tubing (t-stat To Oven Pilot)   (Replaces: 98004310)				$ 94.03
23	98007432		Tubing (t-stat To Oven Valve)		Appelez-nous	-
24	98007409		Tubing, Pilot		Appelez-nous	-
25	98007410		Bracket, Regulator		Appelez-nous	-
26	98007431		Fitting 3/8 Npt				$ 110.58
29	98005562		Nut, Fitting		Appelez-nous	-
30	98007116		Sleeve, 3/16``		Appelez-nous	-
31	98007429		Tubing, Inlet		Appelez-nous	-
32	98007430		Fitting 1/4-9/16		Appelez-nous	-
33	98007226		Cover, Pilot		Appelez-nous	-
34	98006645		Screw		Appelez-nous	-
35	98005026		Clip		Appelez-nous	-
37	W10854964		Lp Spud Kit (for Use With Lp)   (Replaces: 98013674)				$ 102.65
37	98007445		Clip, E-ring		Appelez-nous	-
37	N/A		Following Parts Not Illustrated		Appelez-nous	-
