View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop Parts
02 - Backguard Parts

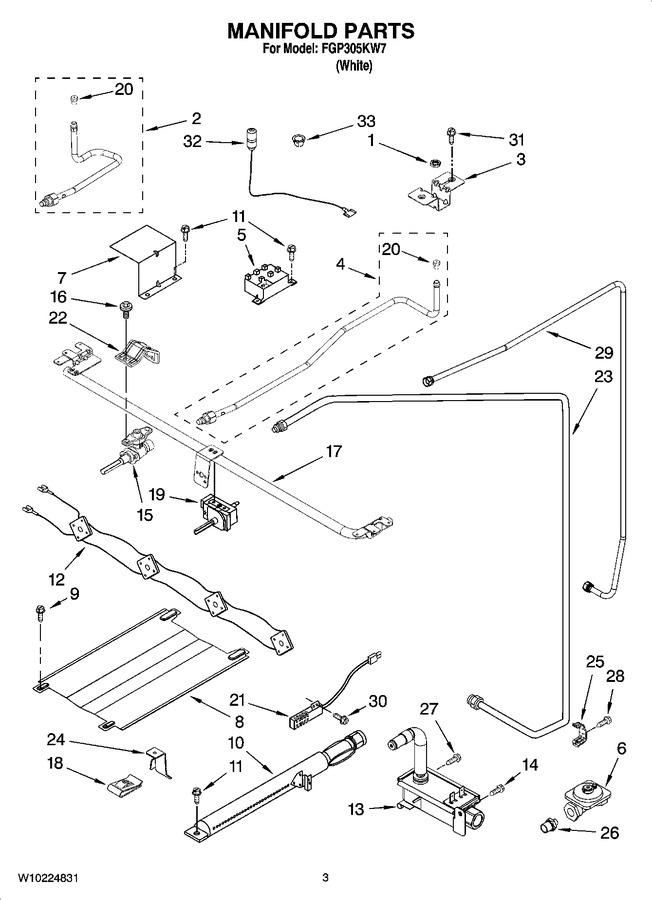

03 - Manifold Parts
04 - Chassis Parts
05 - Oven & Broiler Parts
06 - Door Parts, Optional Parts (not Included)
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98017323 | Nut (4) |
|
- | |||||
| 2 | WP98017582 | Venturi, Front (2) (Replaces: 98017582) |
|
$ 152.39 | |||||
| 3 | WP98017741 | Brkt., Venturi (4) (Replaces: 98017741) |
|
$ 77.47 | |||||
| 4 | WP98017359 | Venturi, Rear (2) (Replaces: 98017359) |
|
$ 166.58 | |||||
| 5 | 98017954 | Spark Module |
|
- | |||||
| 6 | 98007411 | Regulator |
|
$ 130.98 | |||||
| 7 | 98007192 | Cover, Module |
|
- | |||||
| 8 | 98015099 | Spreader, Flame |
|
$ 243.31 | |||||
| 9 | W11233072 | Screw (Replaces: 98006632) |
|
Immediately | $ 12.62 | ||||
| 10 | WP98012138 | Burner, Oven (Replaces: 98012138) |
|
$ 200.93 | |||||
| 11 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 12 | WPW10361492 | Harness, Switch (Replaces: 98014545) |
|
$ 181.52 | |||||
| 13 | WP98014893 | Valve, Oven (Replaces: 98014893) |
|
$ 141.73 | |||||
| 14 | W10837731 | Screw (Replaces: 98006633) |
|
$ 7.07 | |||||
| 15 | WPW10141709 | Valve, Burner (4) (Replaces: W10141709) |
|
Immediately | $ 207.32 | ||||
| 16 | 98017517 | Bolt, Valve Mtg |
|
- | |||||
| 17 | 98017558 | Pipe, Manifold |
|
- | |||||
| 18 | 98009179 | U-nut |
|
$ 12.02 | |||||
| 19 | WPW10641988 | Thermostat (Replaces: 98003984) |
|
$ 106.17 | |||||
| 20 | WP98017348 | Orifice (4) (Replaces: 98017348) |
|
$ 78.85 | |||||
| 21 | W10918546 | Igniter, Oven (oven Pilot) (Replaces: 98005652) |
|
Immediately | $ 55.40 | ||||
| 22 | 98017516 | Bracket, Valve (4) |
|
$ 80.17 | |||||
| 23 | 98007428 | Tubing (regltr To Oven Valve) |
|
- | |||||
| 24 | 98013314 | Locator, Burner |
|
- | |||||
| 25 | 98007410 | Bracket, Regulator |
|
- | |||||
| 26 | 98007431 | Fitting 3/8to9/16 |
|
$ 110.58 | |||||
| 27 | 98013634 | Screw |
|
- | |||||
| 28 | 1180823 | Screw |
|
- | |||||
| 29 | WP98017171 | Tubing, Inlet (Replaces: 98017171) |
|
$ 233.12 | |||||
| 30 | W11676351 | Screw (Replaces: 98005659) |
|
- | |||||
| 31 | W10837674 | Screw (Replaces: W10146346) |
|
$ 6.90 | |||||
| 32 | WPW10209657 | Igniter, Top (lr) (Replaces: W10209657) |
|
$ 48.56 | |||||
| 32 | WPW10209656 | Igniter, Top (rf, Rr, Lr) (Replaces: W10209656) |
|
Immediately | $ 73.07 | ||||
| 33 | WPW10278150 | Clip, Igniter (Replaces: 98015032) |
|
$ 40.61 | |||||
| WPW10032010 | Lp Spud Kit (for Use With Lp) (Replaces: W10032010) |
|
$ 95.03 |
