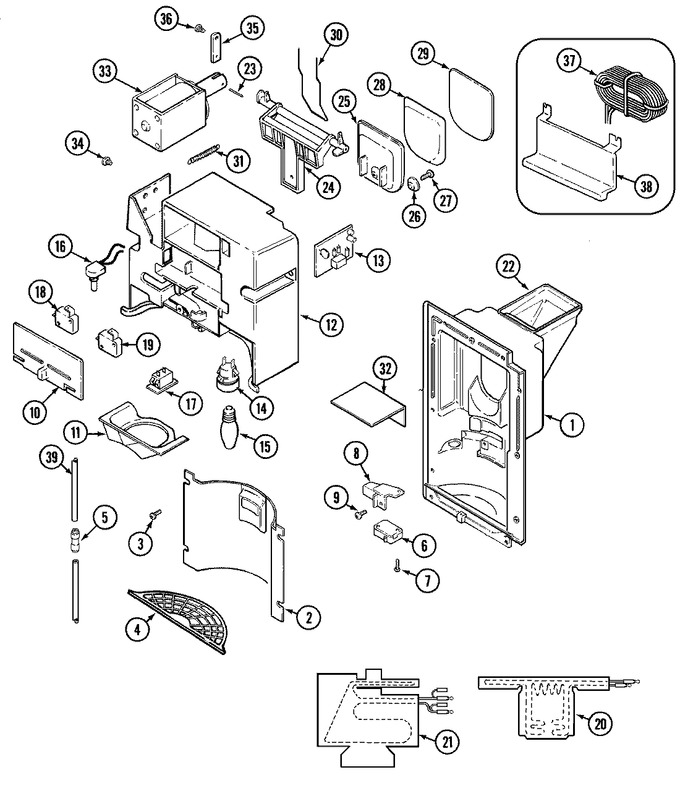

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 12000057 | Kit, Fountain Assy. | 10 |
|
- | ||||
| 1 | 69841-1 | Insulation, Bonnet Top | 10 |
|
- | ||||
| 1 | 69840-1 | Insulation Fountain | 10 |
|
- | ||||
| 1 | 69683-1 | Insulation, Fountain | 10 |
|
- | ||||
| 2 | 61001860 | Liner & Pad Assy., Fountain | 10 |
|
- | ||||
| 3 | 65275-81 | Screw | 10 |
|
- | ||||
| 4 | 67223-1 | Grill,fountain | 10 |
|
- | ||||
| 5 | 61001266 | Union, Reducing (5/16``-3/8``) | 10 |
|
$ 21.17 | ||||
| 6 | 55440-1 | Switch, Crusher | 10 |
|
- | ||||
| 7 | 415041-35 | Screw | 10 |
|
- | ||||
| 8 | 70044-1 | Bracket, Actuator Switch | 10 |
|
- | ||||
| 9 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 10 | 69681-8 | Button, Selector | 10 |
|
- | ||||
| 10 | 65275-74 | Screw | 10 |
|
- | ||||
| 11 | 70023-2 | Guard, Chip | 10 |
|
- | ||||
| 12 | 70324-5 | Bracket, Fountain | 10 |
|
- | ||||
| 12 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 13 | 61001559 | Board, Pc | 10 |
|
- | ||||
| 14 | 70119-2 | Socket, Light (w/nut) | 10 |
|
- | ||||
| 15 | 61001236 | Bulb, Light | 10 |
|
- | ||||
| 16 | 69832-10 | Switch, Light (w/nut) | 10 |
|
- | ||||
| 17 | 7403P067-60 | Switch, Safety (Replaces: 69904-1) | 10 |
|
$ 91.35 | ||||
| 18 | 55440-1 | Switch, Crusher | 10 |
|
- | ||||
| 19 | 415041-35 | Screw | 10 |
|
- | ||||
| 19 | 55440-3 | Switch | 10 |
|
- | ||||
| 20 | 69796-2 | Heater, Fountain (upper) | 10 |
|
- | ||||
| 21 | 69842-1 | Heater, Fountain (lower) | 10 |
|
- | ||||
| 22 | 52077-27 | Seal, Ice Chute | 10 |
|
- | ||||
| 23 | 67291-3 | Pin, Spring | 10 |
|
- | ||||
| 24 | 69675-7 | Strike, Ice Door | 10 |
|
$ 49.08 | ||||
| 25 | 68957-2 | Door, Ice | 10 |
|
$ 6.21 | ||||
| 26 | 68566-1 | Retainer | 10 |
|
- | ||||
| 27 | 405116-35 | Screw | 10 |
|
- | ||||
| 28 | 68557-1 | Insulation, Ice Door | 10 |
|
- | ||||
| 29 | 69867-1 | Seal, Ice Door | 10 |
|
$ 5.70 | ||||
| 30 | 69868-1 | Spring, Ice Door | 10 |
|
- | ||||
| 31 | 67339-1 | Spring, Extension | 10 |
|
- | ||||
| 32 | 53808-38 | Foil, Fountain Front | 10 |
|
- | ||||
| 33 | 67883-5 | Solenoid | 10 |
|
- | ||||
| 34 | 406033-1 | Screw | 10 |
|
- | ||||
| 35 | 69688-1 | Link, Solenoid | 10 |
|
- | ||||
| 36 | 489392 | Screw (Replaces: 415013-35) | 10 |
|
$ 12.02 | ||||
| 37 | 67616-1 | Coil, Water | 10 |
|
- | ||||
| 37 | WP67006908 | Screw (Replaces: 400022-1) | 10 |
|
Immediately | $ 7.16 | |||
| 38 | 68837-1 | Cover, Water Coil | 10 |
|
- | ||||
| 38 | W11233072 | Screw (Replaces: 400015-36) | 10 |
|
Immediately | $ 12.62 | |||
| 39 | WPW10426709 | Tubing, Coil To Fountain (Replaces: 67187-29) | 10 |
|
$ 126.83 | ||||
| 39 | WPW10426709 | Tubing, Valve To Coil (Replaces: 67187-5) | 10 |
|
$ 126.83 | ||||
| NI | 27116-5 | Nut, Wire | 10 |
|
- | ||||
| NI | 70446-2 | Wire Harness, Fountain | 10 |
|
- | ||||
| NI | 69902-2 | Wire Harness, Fountain | 10 |
|
- | ||||
| NI | 69903-4 | Wire Harness, Fountain | 10 |
|
- | ||||
| NI | 69591-2 | Wire Harness, Fountain | 10 |
|
- |
