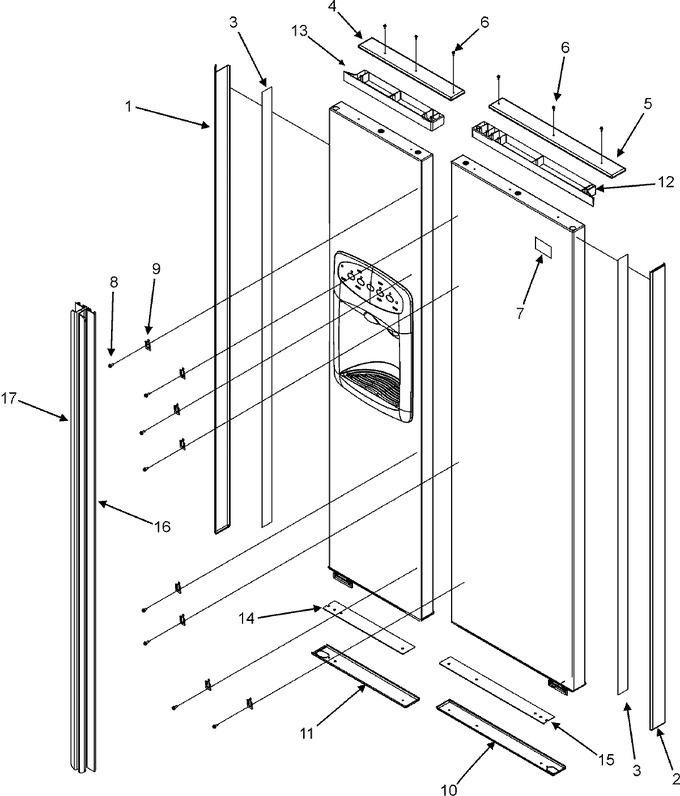

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	12638301W		Trim, Vert Fz (wht)	10	Appelez-nous	-
2	12638302W		Trim, Vert Ref (wht)	10	Appelez-nous	-
3	M0275178		Tape Double Back (roll)k	10	Appelez-nous	-
4	12626505W		Trim, Top Fz Dr (wht)	10	Appelez-nous	-
5	12626502W		Trim, Top Ref Dr (wht)	10	Appelez-nous	-
6	W11245710		Screw, Sm (stnls)   (Replaces: M0210417)	10		Immediately	$ 12.65
6	WP98165		Screw, Sm   (Replaces: 67006287)	11			$ 7.20
7	66981-5		Bezel, Nameplate (wht)	10	Appelez-nous	-
8	WP489399		Screw, Se   (Replaces: M0232929)	10			$ 6.26
9	12315101		Clip	10	Appelez-nous	-
10	WP98165		Screw, Sm   (Replaces: 67006287)	11			$ 7.20
10	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 7.20
10	12629606W		Trim, Btm Ref Door (wht)	11	Appelez-nous	-
10	67005782		Trim, Btm Ref Door (wht)	10	Appelez-nous	-
11	67005783		Trim, Btm Frz Door (wht)	10	Appelez-nous	-
11	WP98165		Screw, Sm   (Replaces: 67006287)	11			$ 7.20
11	12629605W		Trim, Btm Frz Door (wht)	11	Appelez-nous	-
11	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 7.20
12	67005474		Ext., Ref. Door (wht)	10	Appelez-nous	-
12	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 7.20
13	WP98165		Screw, Sm   (Replaces: 67004822)	10			$ 7.20
13	67005475		Ext., Frz. Door (wht)	10	Appelez-nous	-
14	67006800		Support, Frz. Trim	11	Appelez-nous	-
14	67005476		Support, Frz. Trim	10	Appelez-nous	-
15	67005477		Support, Ref. Trim	10	Appelez-nous	-
15	67006801		Support, Ref. Trim	11	Appelez-nous	-
16	67005778		Handle, Ref. Door (wht)	10	Appelez-nous	-
17	67005780		Handle, Frz. Door (wht)	10	Appelez-nous	-
