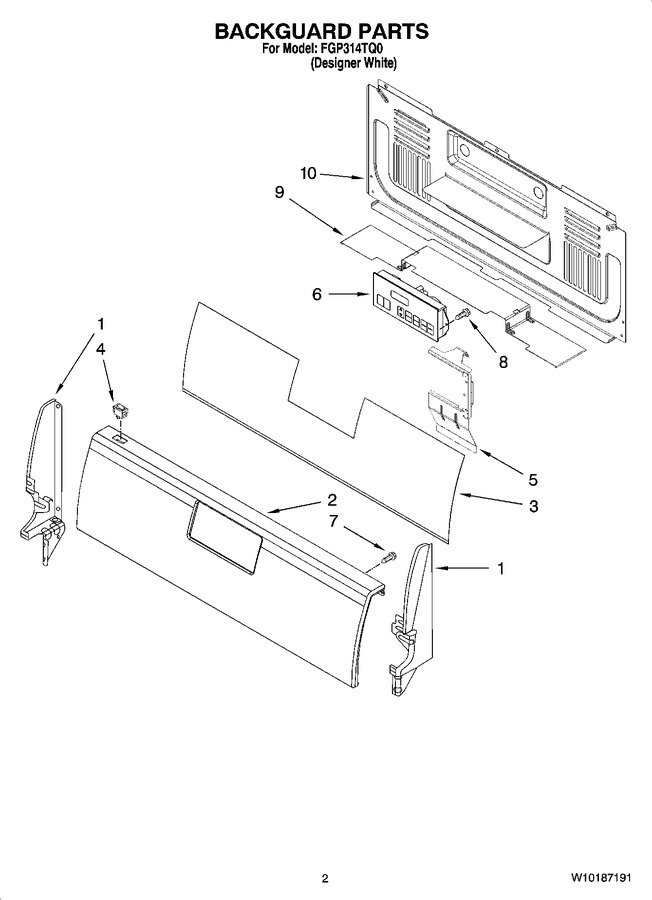

02 - Backguard Parts


03 - Manifold Parts


04 - Chassis Parts


05 - Oven & Broiler Parts


06 - Door Parts, Optional Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	98005336		Endcap (left Hand White)				$ 79.14
1	98005337		Endcap (right Hand White)				$ 79.22
2	W10153145		Panel, Backguard		Appelez-nous	-
3	W10167297		Foil, Backguard		Appelez-nous	-
4	98006393		Switch, Rocker		Appelez-nous	-
5	98018143		Bracket, Control (right)		Appelez-nous	-
5	98018144		Bracket, Control (left)		Appelez-nous	-
6	6610483		Control, Elec		Appelez-nous	-
7	WP3400805		Screw (4)   (Replaces: 98015526)				$ 6.47
8	WP3400805		Screw (2)   (Replaces: 98004219)				$ 6.47
9	W10165379		Deflector		Appelez-nous	-
10	W10168414		Cover, Rear		Appelez-nous	-
