SELECT A DIAGRAM

01 - Cover


03 - Freezer Door


05 - Refrigerator Door


07 - Cabinet


09 - Shelves


11 - Controls


13 - System


15 - Ice & Water Dispenser


17 - Ice Container


19 - Ice Maker

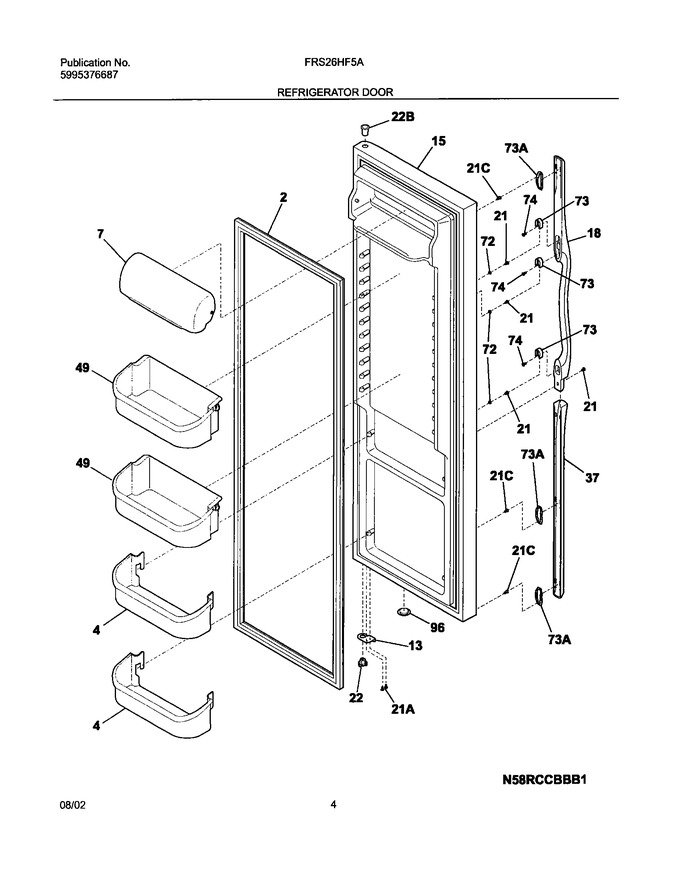

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	5303918455		Door Stop,white,ref   (Replaces: 240537101)				$ 142.04
15	240451900		Panel-refr Door,white ,complete Assy				$ 422.37
18	240359101		Handle-door,white		Appelez-nous	-
21	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22	240328201		Bearing-hinge,closer			Immediately	$ 17.72
37	240359201		Trim-handle,30.13`` ,white ,lower		Appelez-nous	-
49	240356401		Bin-door,gallon			Immediately	$ 85.64
72	240421701		Button-handle Mtg,dovetail				$ 14.81
73	218396700		Block-handle Mtg, Dovetail			Immediately	$ 45.36
74	215503203		Screw,cr Pan Hd `10-16 X 0.500   (Replaces: 215503200)			Immediately	$ 7.09
96	240345505		Plug,door Foam Hole ,white				$ 12.90
21A	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
21C	240521303		Screw,no.10-16 X 1/2   (Replaces: 240521301)			Immediately	$ 30.20
22B	240328401		Bearing-hinge,upper				$ 12.97
73A	240339101		Part Of Handle/trim (not Available)				$ 4.20
F2	241786013		Gasket-refr Door,white ,magnetic   (Replaces: 240390601)				$ 95.90

    View Diagram in Separate Window       Print Part List
