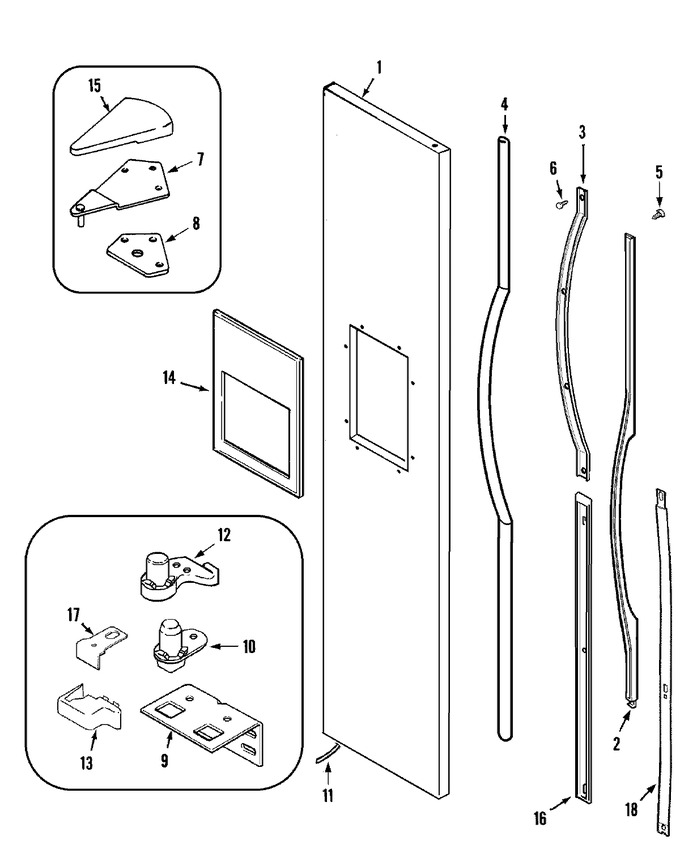

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	61006045		Panel, Frz. Door (wht)	15	Appelez-nous	-
2	61004371		Handle, Door (wht)	15	Appelez-nous	-
3	61004761		Frame, Handle	15	Appelez-nous	-
4	61004082		Insert, Handle (wht)	15	Appelez-nous	-
5	61003351		Screw, Handle To Frame	15	Appelez-nous	-
6	W10856122		Screw   (Replaces: 61002180)	15			$ 6.98
7	61004896		Hinge, Upper	15			$ 36.71
7	WP3-24838-048		Screw   (Replaces: 61004763)	15			$ 7.00
8	61001922		Shim, Upper Hinge	15			$ 0.71
9	61001918		Hinge, Lower (wht)	15			$ 38.93
9	3400112		Screw   (Replaces: 61003128)	15			$ 62.96
10	61003174		Pin, Lower Hinge	15			$ 6.22
11	WP2300868		Union, Reducing (5/16``-5/16``)   (Replaces: 61005808)	15		Immediately	$ 26.15
11	61004569		Tubing, Fountain	15	Appelez-nous	-
12	61005726		Closer, Door (w/cup)	15			$ 27.14
12	W10856122		Screw   (Replaces: 61002180)	15			$ 6.98
13	61003219		Cover, Lower Hinge (wht)	15			$ 5.79
14	61004042		Escutcheon (wht)	15	Appelez-nous	-
14	489392		Screw   (Replaces: 415013-35)	15			$ 12.02
15	61004642		Cover, Upper Hinge (wht)	15			$ 15.16
15	WP8281196		Screw, Cover   (Replaces: 61004641)	15		Immediately	$ 6.47
16	W10856122		Screw   (Replaces: 61002180)	15			$ 6.98
16	61004956		Trim, Handle Ext. (lwr-wht)	15	Appelez-nous	-
17	W10856122		Screw   (Replaces: 61002180)	15			$ 6.98
17	61004120		Stop, Door	15	Appelez-nous	-
18	61004781		Retainer, Handle	15	Appelez-nous	-
