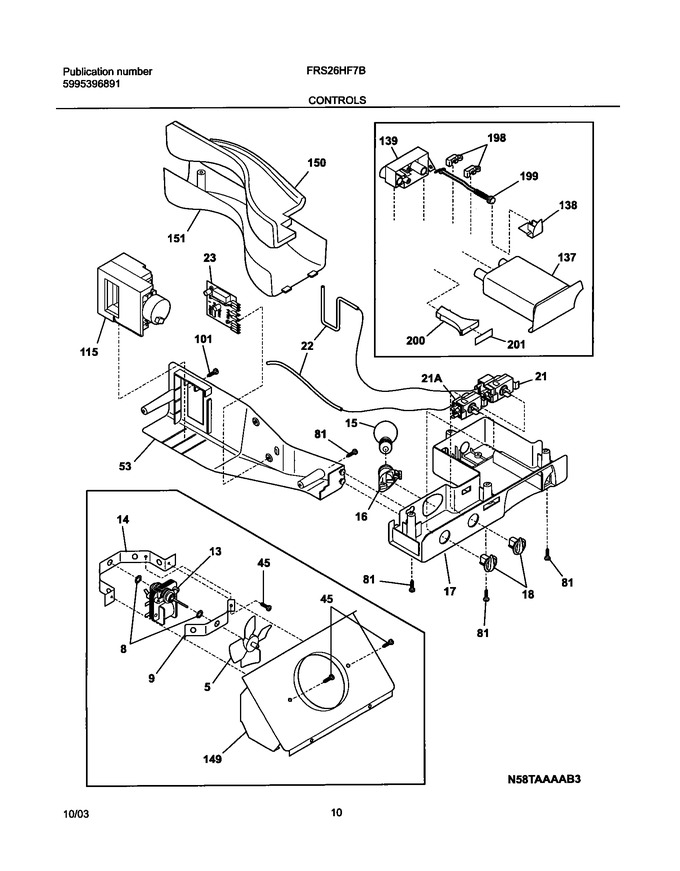

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	5300157666		Bushing - Motor Mtg, (2)		Appelez-nous	-
9	5303292396		Bracket-motor Mtg,front				$ 72.30
14	240563901		Bracket-motor Mtg,rear		Appelez-nous	-
15	316538904		Light Bulb/lamp,a-15 ,clear ,40 W ,   (Replaces: 240436702)			Immediately	$ 20.48
17	240317701		Box-control,front				$ 105.95
18	240360801		Knob-temp Control				$ 43.95
21	241537104		Control-temperature   (Replaces: 241507701)			Immediately	$ 198.68
22	218660702		Tube-insulator		Appelez-nous	-
45	5304455651		Screw   (Replaces: 5303001343)				$ 14.41
53	240369501		Box-control				$ 78.37
81	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
101	218493101		Screw,hex Washer Head `8-18ab X 1-3/4   (Replaces: 218493100)				$ 13.46
115	241600902		Damper Assy,w/seal   (Replaces: 240521107)				$ 274.83
137	WF2CB		Filter,water ,front ,cassette   (Replaces: 240396401)			Immediately	$ 108.24
138	240397301		Button-filter Release				$ 91.76
139	240396002		Base-water Filter   (Replaces: 240396001)			Immediately	$ 119.66
149	240331608		Shroud-fan Orfice		Appelez-nous	-
150	240394204		Insulation-water Tube Cover		Appelez-nous	-
151	240373806		Cover-water Tube				$ 101.06
198	240397401		Retainer				$ 59.54
199	240398401		Spring-filter Release Rod				$ 59.16
199	240397501		Rod				$ 55.57
200	240397601		Light Pipe				$ 76.65
201	240398501		Label-control Box		Appelez-nous	-
21A	5304496561		Control-temperature,frzr Section   (Replaces: 5304421067)			Immediately	$ 141.37
F13	240563701		Motor-fan		Appelez-nous	-
F137	242227702		Bypass,water Filter ,optional Part   (Replaces: 240396701)			Immediately	$ 73.16
F139	240527001		O-ring,wtr Filter Base   (Replaces: 240526901)				$ 10.62
F16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
F23	241508001		Control-defrost,adaptive Timer ,		Appelez-nous	-
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	5304455649		Screw   (Replaces: 5303001259)				$ 17.01
NI	241508101		Harness-wiring,control Box		Appelez-nous	-
NI	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
NI	3205266		Edge Protector, Wiring Harness				$ 80.09
NI	240427201		Heater-freezer Control				$ 116.85
NI	240470401		Connector-amp		Appelez-nous	-
