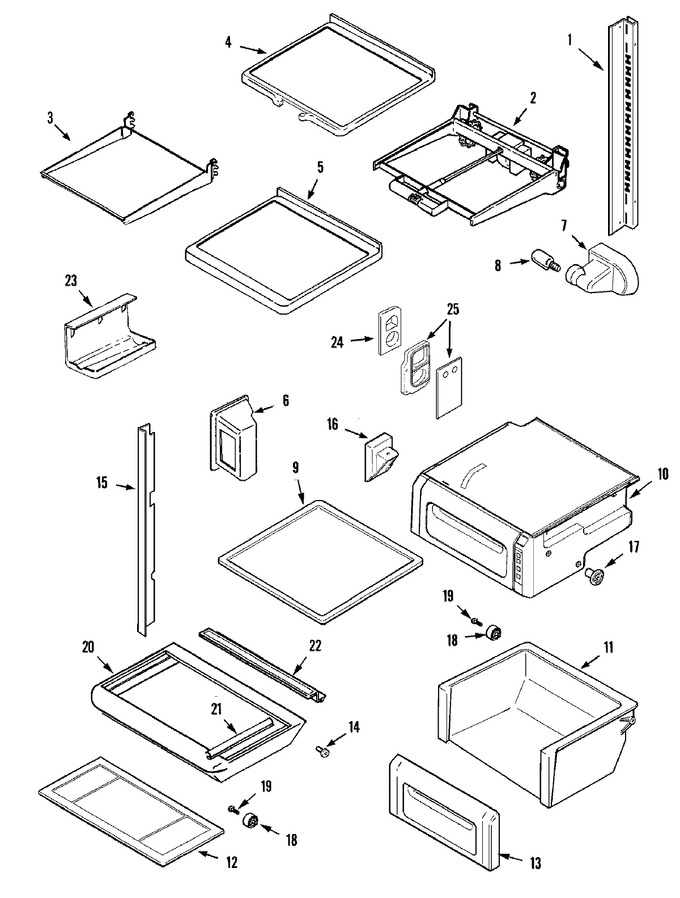

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 61005630 | Rail, Shelf Support | 11 |
|
$ 93.49 | ||||
| 1 | W11233072 | Screw (Replaces: 61005165) | 11 |
|
Immediately | $ 12.62 | |||
| 2 | 61004100 | Frame Assy., Elevator Shelf | 11 |
|
- | ||||
| 2 | 61004480 | Glide, Shelf | 11 |
|
- | ||||
| 3 | 61004157 | Frame, Slide Out Shelf | 11 |
|
- | ||||
| 4 | 61004395 | Shelf, Elevator | 11 |
|
- | ||||
| 5 | 61004156 | Shelf, Slide Out (spillproof) | 11 |
|
- | ||||
| 6 | WP61006081 | Cover Assy., Air Return (Replaces: 61005585) | 11 |
|
$ 80.27 | ||||
| 7 | 61005631 | Receptacle Assy., Bulb | 11 |
|
- | ||||
| 8 | W11618980 | Bulb, Light (40w) (Replaces: 61002812) | 11 |
|
$ 19.22 | ||||
| 9 | 61004975 | Shelf, Spillproof | 11 |
|
- | ||||
| 10 | 12001962 | Crisper Assy. (upr-4 Button) | 11 |
|
- | ||||
| 10 | 12001963 | Crisper Assy. (mid-3 Button) | 11 |
|
- | ||||
| 11 | 61005622 | Pan Assy., Crisper (lwr) | 11 |
|
$ 63.03 | ||||
| 12 | 61004985 | Cover, Crisper Shelf (lwr) | 11 |
|
- | ||||
| 13 | 61004987 | Front Assy., Crisper Pan (lwr) | 11 |
|
- | ||||
| 13 | 61003932 | Seal | 11 |
|
- | ||||
| 14 | 67764-1 | Support, Crisper Shelf | 11 |
|
$ 8.05 | ||||
| 14 | 61005338 | Screw | 11 |
|
- | ||||
| 14 | WP61005337 | Support, Crisper Shelf (Replaces: 61005337) | 11 |
|
Immediately | $ 10.46 | |||
| 14 | WP489478 | Screw (Replaces: 400017-1) | 11 |
|
$ 6.98 | ||||
| 15 | 61004980 | Trim, Crisper Assy. | 11 |
|
- | ||||
| 16 | 61005441 | Screw | 11 |
|
- | ||||
| 16 | 61005440 | Support, Crisper | 11 |
|
- | ||||
| 17 | WP67006908 | Screw (Replaces: 400022-1) | 11 |
|
Immediately | $ 7.16 | |||
| 17 | 61005080 | Support, Enclosure | 11 |
|
$ 26.34 | ||||
| 18 | 67423-2 | Roller | 11 |
|
$ 20.83 | ||||
| 18 | WP61002307 | Roller (Replaces: 61002307) | 11 |
|
Immediately | $ 7.30 | |||
| 19 | WP61002308 | Screw (Replaces: 61004728) | 11 |
|
$ 6.89 | ||||
| 19 | 65275-6 | Screw | 11 |
|
$ 5.48 | ||||
| 20 | 61004984 | Frame, Crisper Shelf (lwr) | 11 |
|
- | ||||
| 21 | 61003938 | Seal, Crisper Side | 11 |
|
- | ||||
| 22 | 61005827 | Seal, Crisper Shelf (rear) | 11 |
|
- | ||||
| 23 | 61002657 | Holder, Beverage | 11 |
|
- | ||||
| 24 | 61005249 | Spacer, Air Return | 11 |
|
- | ||||
| 25 | 12001848 | Damper Assy., Exhaust | 11 |
|
$ 14.67 |
