View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
01 - Cooktop, Literature

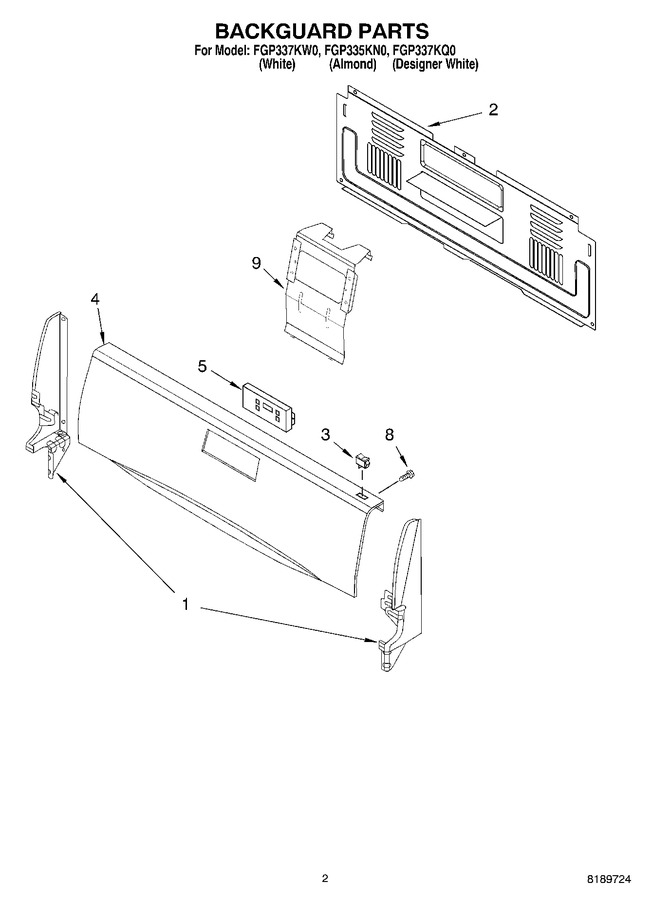

02 - Backguard
03 - Manifold
04 - Chassis
05 - Oven And Broiler
06 - Door, Optional
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 98004632 | Endcap (left Hand Black) |
|
$ 76.20 | |||||
| 1 | 98004633 | Endcap (right Hand Black) |
|
$ 77.53 | |||||
| 1 | 98005336 | Endcap (white Left) |
|
$ 79.14 | |||||
| 1 | 98005337 | Endcap (white Right) |
|
$ 79.22 | |||||
| 2 | 98006083 | Cover, Backguard |
|
- | |||||
| 3 | 98006392 | Swtich, Rocker (black) |
|
- | |||||
| 3 | 98006393 | Swtich, Rocker (white) |
|
- | |||||
| 4 | 98007256 | Panel, Backguard (black) |
|
- | |||||
| 4 | 98007257 | Panel, Backguard (white) |
|
- | |||||
| 5 | 98005755 | Timer (black) |
|
- | |||||
| 5 | 98005756 | Timer (white) |
|
- | |||||
| 8 | W11233072 | Screw (Replaces: 98005000) |
|
Immediately | $ 12.62 | ||||
| 9 | 98011213 | Bracket, Timer |
|
- |
