SELECT A DIAGRAM
01 - Control Panel
02 - Door/drawer

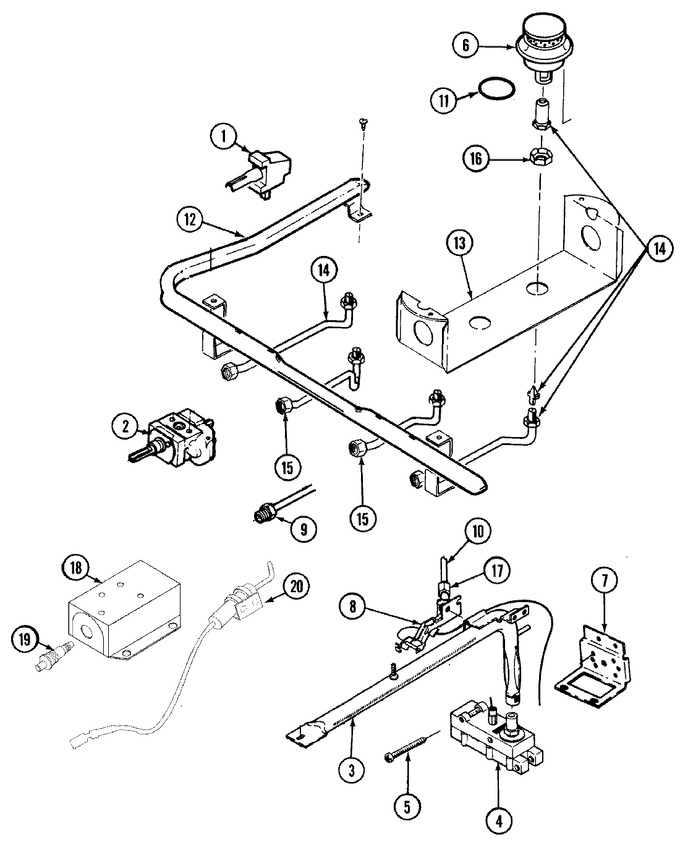

03 - Gas Controls
04 - Oven
05 - Top Assembly
06 - Wiring Information
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 7502P232-60 | Valve, Top Burner | 10 |
|
- | ||||
| 1 | 7101P044-60 | Screw, Valve | 10 |
|
- | ||||
| 2 | 7507P047-60 | Plug, Pipe | 10 |
|
- | ||||
| 2 | 1555251 | Nut, Loxit (3/8``) | 10 |
|
- | ||||
| 2 | 1555222 | Nut, Loxit (3/16``) | 10 |
|
- | ||||
| 2 | 7101P010-60 | Screw, Control | 10 |
|
- | ||||
| 2 | 7515P034-60 | Thermostat | 10 |
|
- | ||||
| 3 | 3403D023-45 | Burner, Oven | 10 |
|
- | ||||
| 4 | 7501P127-60 | Valve, Oven | 10 |
|
- | ||||
| 5 | WP7101P062-60 | Screw No.10 X 2 (Replaces: 7101P062-60) | 10 |
|
$ 7.24 | ||||
| 6 | WP3412D024-09 | Sealed Burner Assy. (blk) (Replaces: 3412D018-09) | 10 |
|
Immediately | $ 92.69 | |||
| 7 | 3801F238-45 | Bracket, Safety Valve | 10 |
|
- | ||||
| 8 | 7432P070-60 | Pilot, Oven | 10 |
|
- | ||||
| 9 | 3414F094-44 | Tubing 3/8`` | 10 |
|
- | ||||
| 10 | 3414F108-44 | Tubing 3/16`` Sub | 10 |
|
- | ||||
| 11 | WP3412D024-09 | Gasket, Burner (Replaces: 7201P050-60) | 10 |
|
Immediately | $ 92.69 | |||
| 12 | 7513P158-60 | Pipe, Manifold | 10 |
|
- | ||||
| 13 | 1555261K | Nut & Ferrule (3/16``) | 10 |
|
- | ||||
| 14 | 5187D029-60 | Orifice Fitting Assembly | 10 |
|
- | ||||
| 15 | 7432P078-60 | Button, Piezo Ignitor | 10 |
|
- | ||||
| 16 | 74001232 | Igniter, Piezo Assy. | 10 |
|
- | ||||
| 17 | 4006F150-51 | Box, Air Tube | 10 |
|
- |
