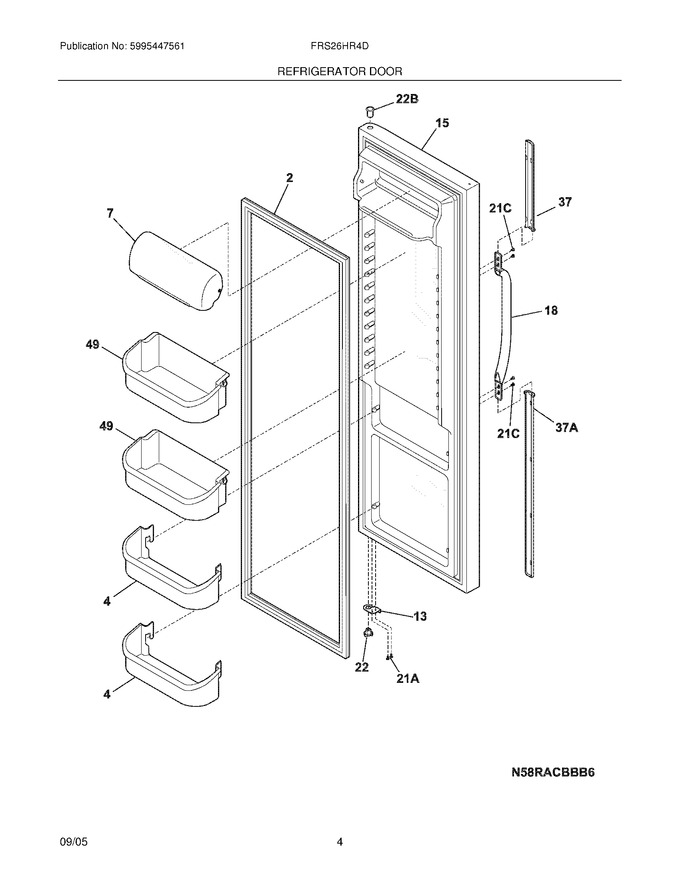

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
4	240323001		Bin-door,pseudo ,bottom			Immediately	$ 42.81
7	240326203		Door-dairy				$ 40.37
13	5303918455		Door Stop,black,ref   (Replaces: 240537105)				$ 142.04
15	240451930		Door-refr,black ,complete Assy				$ 387.14
18	218762703		Handle-door,black				$ 67.04
22	240328203		Bearing-hinge,black ,closer			Immediately	$ 27.23
37	218811620		Trim-handle,black ,upper		Appelez-nous	-
49	240356401		Bin-door,gallon			Immediately	$ 85.64
21A	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,low Profile   (Replaces: 5308016566)				$ 14.18
21C	218781101		Screw,pan Head ,8-18 X 0.625   (Replaces: 218781100)				$ 15.60
22B	240328403		Bearing-hinge,black ,upper				$ 14.85
37A	215782300		Lock-handle Trim,snap-in				$ 34.49
37A	5304471621		Trim-handle,black ,lower   (Replaces: 218811617)				$ 97.83
F2	241569805		Gasket-refr Door,black ,magnetic		Appelez-nous	-
NI	218676004		Band-decorative,satin Aluminum ,handle Trim				$ 57.60
