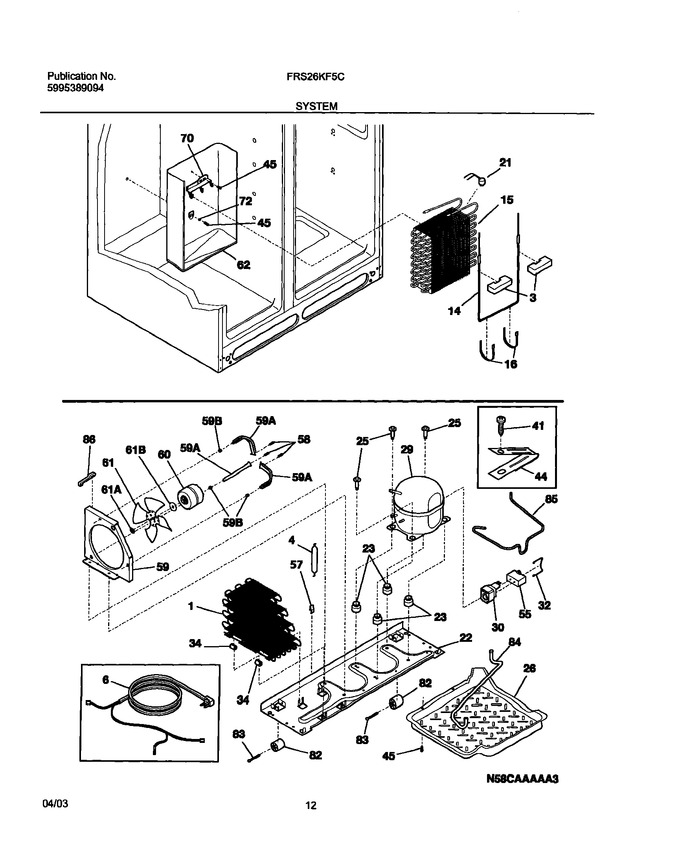

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304526057		Condenser   (Replaces: 240333603)				$ 153.20
3	218679614		Block-evap Coil,styrofoam ,(2)   (Replaces: 218679607)				$ 19.85
6	240346402		Harness-wiring,machine Compt		Appelez-nous	-
16	5308000110		Strap-evap/heater,aluminum ,(2)			Immediately	$ 59.82
21	5303918214		Thermostat-defrost,kit			Immediately	$ 33.42
22	240330003		Base-compressor		Appelez-nous	-
23	218513300		Grommet-compr Mtg,(4)				$ 42.53
25	240491501		Screw-compressor Mtg,hex Washer Head ,1/4-28 X 1.16,shoulder,typ Cf		Appelez-nous	-
26	241697603		Pan-defrost Drain   (Replaces: 240332602)				$ 79.22
32	218973501		Clamp,elec Cont Mtg ,compressor				$ 21.97
34	240405201		Grommet,rubber ,black ,cond Tube/wire				$ 19.85
41	240555001		Screw-no.8-32 X 3/8		Appelez-nous	-
44	215174700		Clamp-service Cord, Strain Relief, Galv Steel		Appelez-nous	-
45	5304455650		Screw   (Replaces: 5308016566)				$ 14.18
57	240542601		Clip-wiring Harness		Appelez-nous	-
58	215004600		Screw,hx Serr Wshr Hd ,8-36 X 7/16 ,cond Fan Motor,(2)		Appelez-nous	-
59	240315501		Shroud-cond Fan				$ 65.42
62	5304481642		Trough-drain   (Replaces: 240429402)				$ 327.07
70	218990801		Bracket-evap/cvr Mtg				$ 63.79
72	218397000		Button-handle Mtg, Dovetail				$ 16.74
82	5304418225		Roller,compressor Base ,rear ,(2)				$ 51.57
83	5304455655		Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin   (Replaces: 5303316859)			Immediately	$ 35.34
84	241957901		Tube-drain,lower   (Replaces: 5304421068)				$ 60.96
85	240346201		Tube-connector,suction		Appelez-nous	-
86	240409302		Spacer-cond Tube,black				$ 67.49
59A	240346501		Bracket-support,cond Mtr ,(3)				$ 21.97
59B	240346601		Grommet-bracket,(3)				$ 19.24
61A	215004700		Nut,speed				$ 3.78
61B	215004800		Grommet-silencer				$ 52.50
F14	5303918255		Defrost Heater Kit   (Replaces: 5303918253)			Immediately	$ 103.48
F15	5303918284		Evaporator Kit				$ 481.01
F29	5304475102		Compressor,w/electricals   (Replaces: 5303918254)			Immediately	$ 660.56
F30	5304491941		Starter-ptc   (Replaces: 218721119)			Immediately	$ 103.19
F4	5303305677		Drier-filter,r134a System   (Replaces: 218944001)			Immediately	$ 31.67
F55	5304464438		Capacitor,run ,50/60 Hz ,220 Vac ,15 Microfarad   (Replaces: 218909901)			Immediately	$ 35.38
F60	240334003		Motor-condenser Fan		Appelez-nous	-
F61	240315401		Fan Blade,galv Steel ,condenser Fan				$ 169.54
NI	5303918222		Hot Tube Repair Kit,service				$ 418.12
NI	240359401		Screw-fan Shroud,(2)		Appelez-nous	-
NI	218252201		Screw,no.8 Truss Hd ,10-32ca X 0.500   (Replaces: 218252200)			Immediately	$ 14.18
NI	240449601		Harness-wiring				$ 201.65
NI	240439901		Wiring Harness,controls				$ 153.85
NI	5303918328		Heat Exchanger Kit,suction Line   (Replaces: 5303918213)				$ 367.18
NI	240346701		Tape-foam Seal,shroud				$ 29.77
