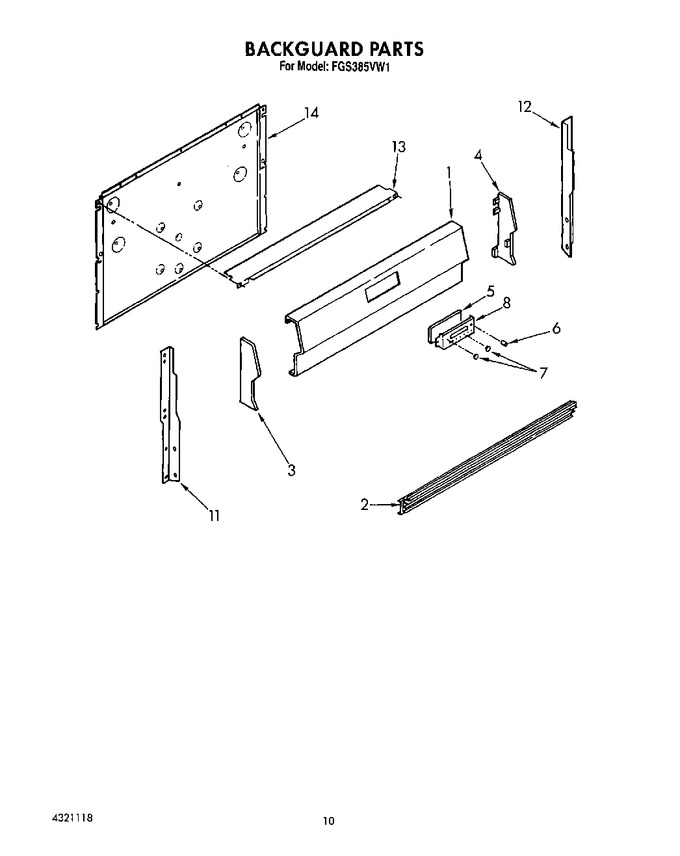

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 4320734 | Panel, Backguard |
|
- | |||||
| 2 | 4320800 | Trim |
|
- | |||||
| 3 | 4320744 | End Cap L.h. |
|
- | |||||
| 4 | 4320745 | End Cap R.h. |
|
- | |||||
| 5 | 4320735 | Erc Control |
|
- | |||||
| 6 | 4320702 | Knob, Erc |
|
- | |||||
| 7 | 4320701 | Button, Set (8) |
|
- | |||||
| 8 | 4320852 | Lens |
|
- | |||||
| 11 | 4315796 | Support L.h. |
|
- | |||||
| 12 | 4315795 | Support, R.h. |
|
- | |||||
| 13 | 4320958 | Shield, Heat |
|
- | |||||
| 14 | 4315797 | Insulation, Backguard |
|
- | |||||
| 14 | 4315785 | Cover, Rear |
|
- | |||||
| LIT4320356 | Guide, Use & Care |
|
- | ||||||
| LIT4321118 | List, Repair Parts |
|
- | ||||||
| LIT4320355 | Instructions, Installation |
|
- |
