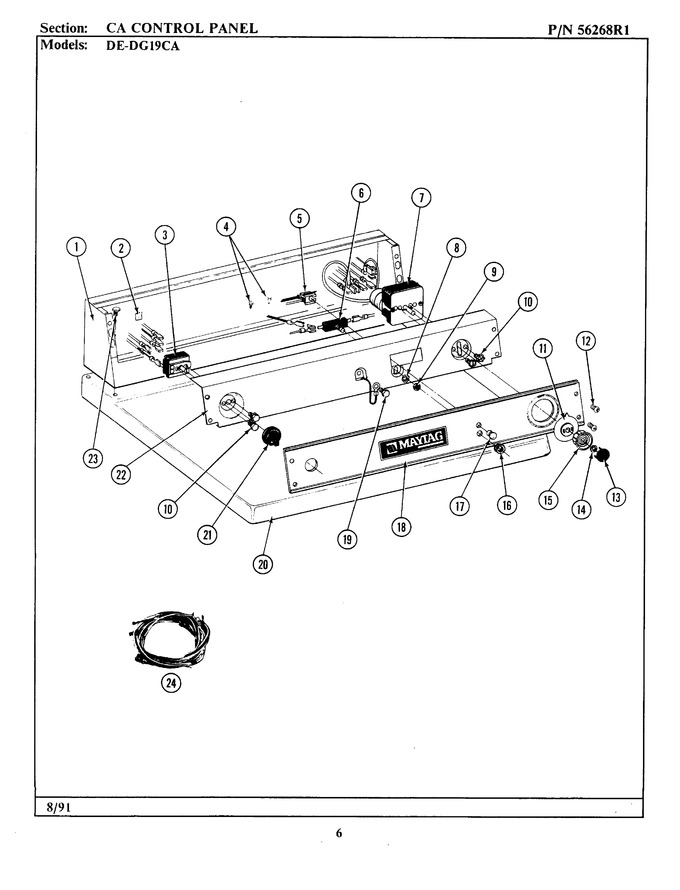

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | Console (wht) | 00 |
|
- | ||||
| 002 | 215003 | Fastener | 00 |
|
- | ||||
| 003 | Y303420 | Selector Switch | 00 |
|
- | ||||
| 004 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 004 | Y314322 | Part Not Used | 00 |
|
- | ||||
| 005 | Y305396 | Indicator Lamp | 00 |
|
- | ||||
| 006 | Y303204 | Start Switch W/nuts | 00 |
|
- | ||||
| 007 | 305214 | Timer | 00 |
|
$ 152.65 | ||||
| 007 | 305215 | Timer (canada) | 00 |
|
- | ||||
| 007 | Y304585 | Timer Motor Rpr For 305214 Timer Only | 00 |
|
- | ||||
| 008 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 009 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 010 | WP488234 | Screw (Replaces: Y313588) | 00 |
|
$ 6.07 | ||||
| 011 | NLA | Timer Dial Indicator | 00 |
|
- | ||||
| 012 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 00 |
|
$ 6.47 | ||||
| 013 | 214806 | Cap, Timer Knob | 00 |
|
- | ||||
| 014 | W10155650 | Nut (Replaces: 312273) | 00 |
|
$ 12.03 | ||||
| 015 | NLA | Selector Knob | 00 |
|
- | ||||
| 016 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 017 | 213099 | Lens, Control Panel | 00 |
|
- | ||||
| 018 | NLA | Control Panel | 00 |
|
- | ||||
| 019 | WP489399 | Screw (Replaces: 211252) | 00 |
|
$ 6.26 | ||||
| 020 | NLA | (alm) | 00 |
|
- | ||||
| 020 | Y305190 | Top Cover (wht) | 00 |
|
- | ||||
| 021 | 205663 | Knob, Selector Switch | 00 |
|
- | ||||
| 022 | NLA | Back Up Plate (wht) | 00 |
|
- | ||||
| 023 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 024 | NLA | Main Wire Harness | 00 |
|
- |
