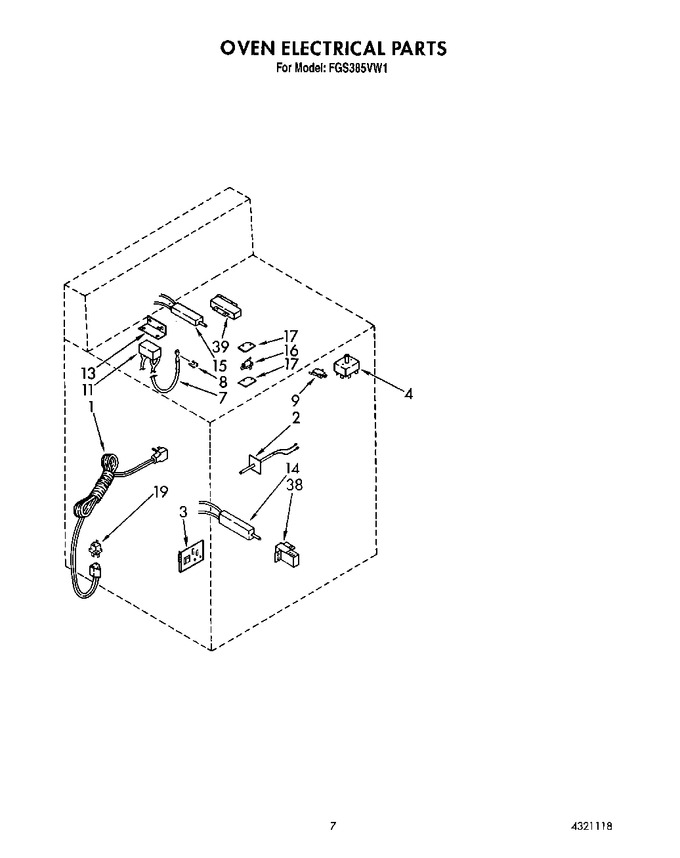

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786578		Cord, Power		Appelez-nous	-
2	786744		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
2	4320772		Sensor, Oven		Appelez-nous	-
3	4320808		Circuit Board		Appelez-nous	-
4	4179076		Switch, Selector		Appelez-nous	-
7	786320		Ignitor, Top (r.h.)		Appelez-nous	-
7	786321		Ignitor, Top (l.h.)		Appelez-nous	-
8	WPY0070927		Mounting Clip, Electrode (2)   (Replaces: 786580)				$ 6.85
9	786259		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
9	4320941		Switch, Top Burner Actuator		Appelez-nous	-
9	786260		Nut		Appelez-nous	-
11	4320867		Spark Module		Appelez-nous	-
13	4320892		Bracket, Spark Module		Appelez-nous	-
14	786324		Kit, Ignitor   (Replaces: 786659)			Immediately	$ 60.68
15	WP486754		Screw (2)   (Replaces: 4320376)				$ 6.75
15	786753		Nut (2)		Appelez-nous	-
15	814269		Ignitor, Broil   (Replaces: 4320913)				$ 184.01
16	786669		Switch, Oven Door Latch		Appelez-nous	-
16	786751		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
19	786570		Plug, Male		Appelez-nous	-
38	786801		Bracket, Bake Ignitor		Appelez-nous	-
39	786802		Bracket, Broiler Ignitor		Appelez-nous	-
