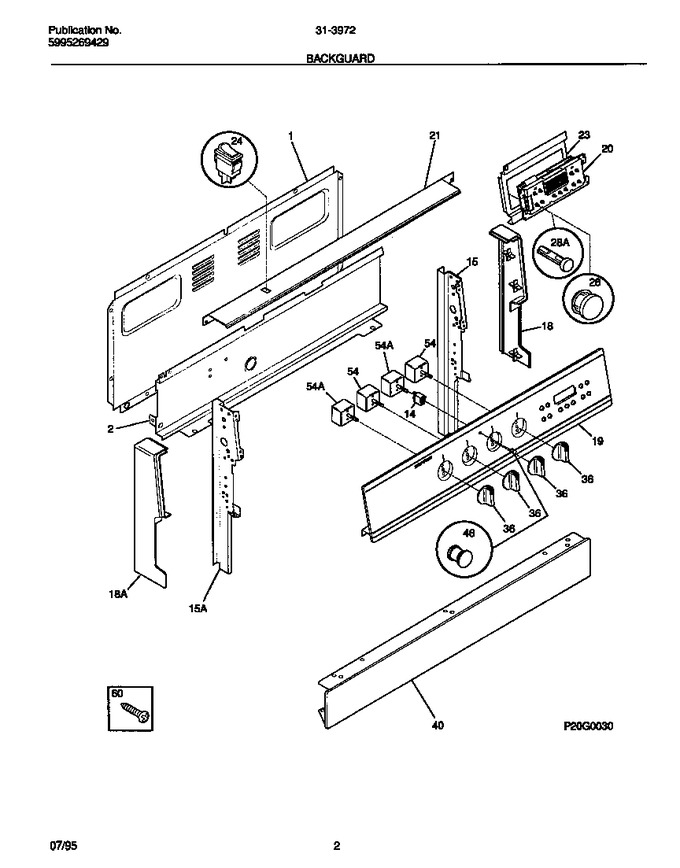

1	316081601		Shield-backguard, Rear Wall		Appelez-nous	-
2	316015907		Shield-backguard, Inner		Appelez-nous	-
14	316022503		Light-lamp, Indicator, 250 V			Immediately	$ 70.16
15	316023110		Support-backguard, Rh		Appelez-nous	-
15	316023111		Support-backguard, Lh		Appelez-nous	-
18	316021805		End Cap, White, Lh		Appelez-nous	-
18	316021804		End Cap, White, Rh		Appelez-nous	-
19	316014713		Panel-control		Appelez-nous	-
20	316064500		Clock/timer, Eoc		Appelez-nous	-
21	316014803		Trim, Backguard, Top		Appelez-nous	-
23	316015007		Bracket-clock Mtg		Appelez-nous	-
24	316060400		Switch-rocker		Appelez-nous	-
28	316036900		Shaft-push Button, Clock/timer/eoc, (11)				$ 11.24
28	316015103		Push Button, Clock/timer/eoc, Gray, (11)				$ 11.60
36	316015202		Knob-control, White		Appelez-nous	-
40	316009288		Panel-manifold		Appelez-nous	-
46	316040200		Lens-light/lamp, Indicator, Amber		Appelez-nous	-
54	5303935086		Switch-6`` Element   (Replaces: 316021500)			Immediately	$ 51.95
54	316436001		Switch-8`` Element   (Replaces: 316021501)			Immediately	$ 51.68
60	5303288574		Screw, Truss Head, 8-10 X 3/8		Appelez-nous	-
*82000	316021109		Screw,hex, 8-18 X 3/8, Back\bodyside   (Replaces: 316021105)			Immediately	$ 27.50
*82001	5303281584		Screw, Truss Head, 8-18 X 1/2		Appelez-nous	-
*82002	5303292005		Screw-switch Mtg, 8-32 X 3/16, Sw To Cntl Pnl, (8)		Appelez-nous	-
