SELECT A DIAGRAM

01 - Internal Oven


02 - External Oven


03 - Manifold

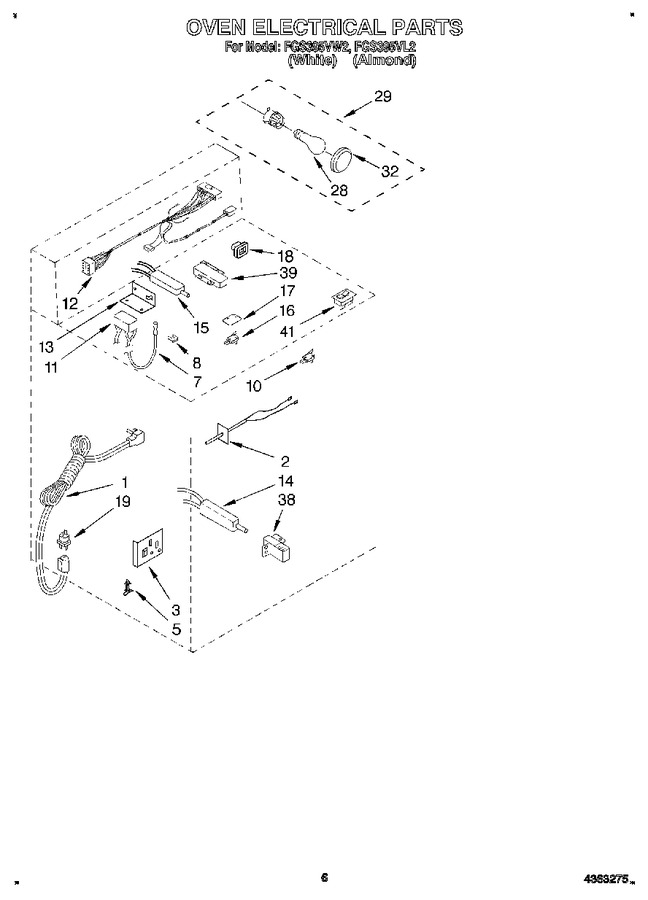

04 - Oven Electrical, Literature


05 - Oven Door And Drawer


06 - Backguard


07 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786578		Cord, Power		Appelez-nous	-
2	4320772		Sensor, Oven		Appelez-nous	-
2	786744		Screw, 6-32 X 1/4 (2)		Appelez-nous	-
3	4320808		Circuit Board		Appelez-nous	-
5	4315254		Support, Circuit Board (4)		Appelez-nous	-
7	4315260		Ignitor, Top (l.h.)		Appelez-nous	-
7	4315261		Ignitor, Top (r.h.)		Appelez-nous	-
8	WPY0070927		Mounting Clip, Electrode (2)   (Replaces: 786580)				$ 6.85
10	786260		Nut		Appelez-nous	-
10	4320941		Switch, Ignitor (4)		Appelez-nous	-
10	786259		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
11	4320867		Spark Module		Appelez-nous	-
12	4362558		Harness, Backguard		Appelez-nous	-
13	4320892		Bracket, Spark Module		Appelez-nous	-
14	786324		Kit, Ignitor   (Replaces: 786659)			Immediately	$ 60.68
15	WP486754		Screw (2)   (Replaces: 4320376)				$ 6.75
15	814269		Ignitor, Broil   (Replaces: 4320913)				$ 184.01
15	786753		Nut (2)		Appelez-nous	-
16	4362916		Switch, Oven Door Latch		Appelez-nous	-
16	786751		Screw, 4-40 X 5/8 (2)		Appelez-nous	-
17	786380		Insulator, Switch		Appelez-nous	-
18	4362620		Plug, Ignitor Wire		Appelez-nous	-
19	786570		Plug, Male		Appelez-nous	-
28	8009		Lamp, Oven   (Replaces: 786742)			Immediately	$ 16.80
29	WP74011278		Housing, Oven Light   (Replaces: 4320323)				$ 101.56
32	WP74011278		Lens, Oven Light   (Replaces: 4320959)				$ 101.56
38	786801		Bracket, Bake Ignitor		Appelez-nous	-
39	4362899		Bracket, Broiler Ignitor		Appelez-nous	-
41	786325		Switch, Oven Light		Appelez-nous	-
	LIT4320356		Guide, Use & Care		Appelez-nous	-
	LIT4320355		Instructions, Installation		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
