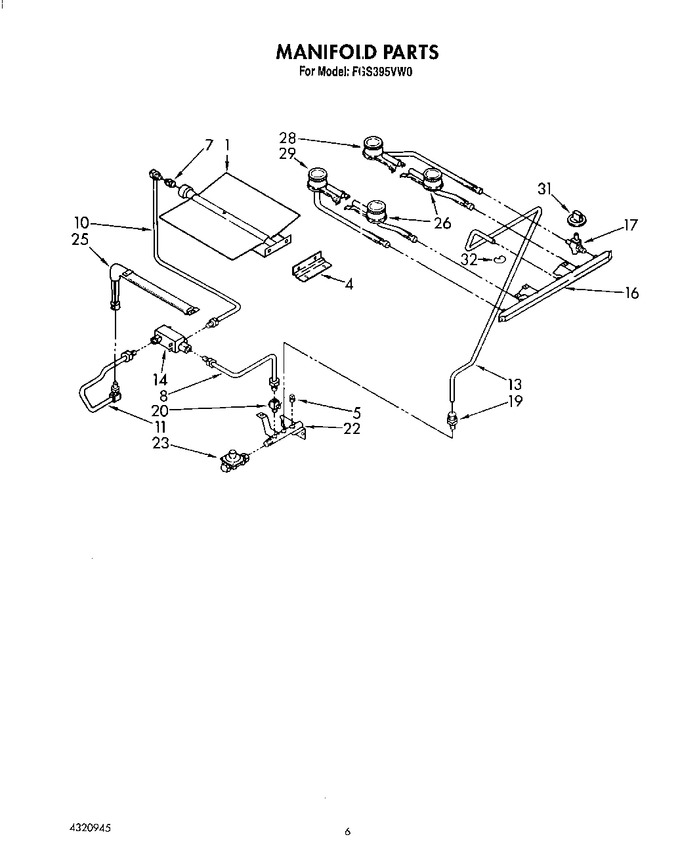

04 - Manifold


05 - Oven Electrical


06 - Oven Door And Drawer


07 - Backguard, Literature


08 - Cooktop


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	786753		Nut, 6-32 (6)		Appelez-nous	-
1	4320907		Burner, Broiler		Appelez-nous	-
4	4320888		Support, Burner Mounting		Appelez-nous	-
4	786740		Screw (3)		Appelez-nous	-
5	W10295523		Pipe Plug, 1/8 Npt   (Replaces: 786545)		Appelez-nous	-
7	4157080		Spud, Orfice		Appelez-nous	-
7	4320926		Natural Gas No. 51.		Appelez-nous	-
7	786309		Lp Gas No. 58		Appelez-nous	-
8	4320314		Tubing, (inlet To Gas Valve)		Appelez-nous	-
10	4320925		Orifice & Tubing Assembly (gas Valve To Ultra Ray Burner)		Appelez-nous	-
10	786741		Nut, Lock		Appelez-nous	-
11	786741		Nut, Lock		Appelez-nous	-
11	4320315		Hood & Tubing Assembly (gas Valve To Lower Oven Burner)		Appelez-nous	-
13	4320655		Tubing (inlet To Manifold)		Appelez-nous	-
14	4320316		Valve, Dual Gas Valve		Appelez-nous	-
16	4320956		Manifold		Appelez-nous	-
17	4320943		Valve, Top Burner (4)		Appelez-nous	-
19	4320319		Fitting		Appelez-nous	-
20	4320320		Valve, Shut-off		Appelez-nous	-
22	4320321		Inlet, Gas		Appelez-nous	-
23	786313		Regulator, Pressure		Appelez-nous	-
25	786314		Oven Burner, Lower		Appelez-nous	-
26	786315		Top Burner, Front (2)		Appelez-nous	-
28	786316		Top Burner, R.r.		Appelez-nous	-
29	786317		Top Burner, L.r.		Appelez-nous	-
31	4320942		Knob, Top Burner (4)		Appelez-nous	-
32	4320940		Elbow, Manifold		Appelez-nous	-
