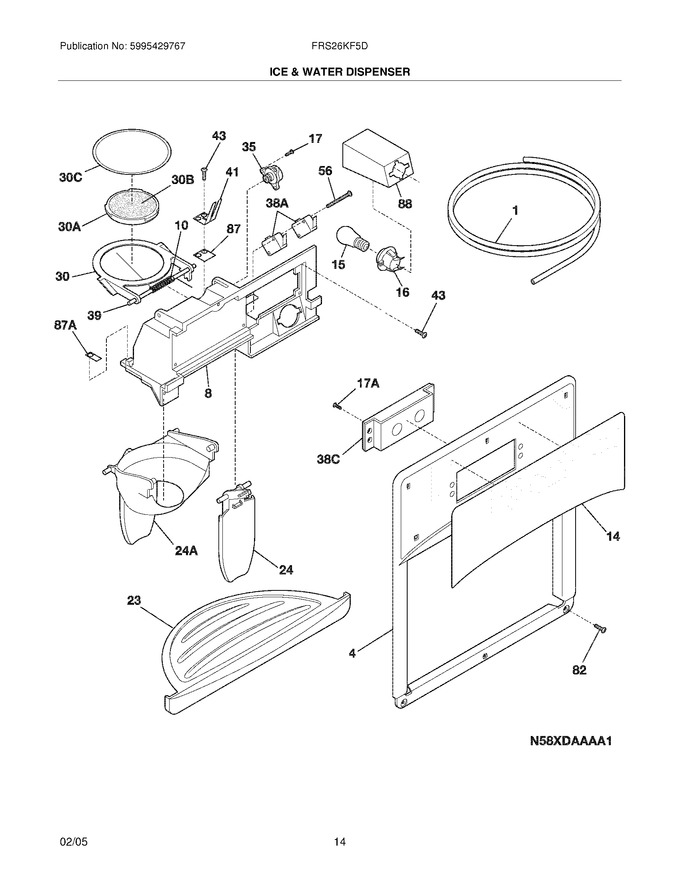

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	218976409		Tube-water-door			Immediately	$ 60.25
4	241679003		Cover-module,black   (Replaces: 5304433186)				$ 75.02
8	5304422013		Module-dispenser		Appelez-nous	-
10	241688901		Spring-torsion   (Replaces: 5304426649)			Immediately	$ 21.27
14	240570237		Label-module Cover,black   (Replaces: 240570206)			Immediately	$ 30.03
15	5304421616		Light Bulb				$ 32.45
16	240548901		Socket-light				$ 63.70
17	241679801		Screw   (Replaces: 5304421619)				$ 14.18
23	241649003		Drip Tray,black   (Replaces: 240323603)				$ 61.66
24	241682003		Actuator-water,black   (Replaces: 5304422026)			Immediately	$ 55.63
30	241688401		Door Assy-ice Chute   (Replaces: 5304421628)				$ 49.62
35	241689301		Damper-rotary   (Replaces: 5304421620)				$ 70.52
39	241688801		Pin-hinge   (Replaces: 5304421627)				$ 43.24
41	241689001		Spring-actuator   (Replaces: 5304421829)				$ 21.97
43	215296300		Screw,plask H/l ,no.6 X 3/8		Appelez-nous	-
56	241689201		Screw-micro Switch,pan Head   (Replaces: 5304421830)				$ 13.46
82	5304453707		Screw-no.8-18 X 1/2,no.6 Hd Plask   (Replaces: 240363401)			Immediately	$ 15.92
87	241688302		Bearing Plate   (Replaces: 5304421622)				$ 19.85
88	5304421615		Shield-light		Appelez-nous	-
17A	5304433185		Screw,switch Mtg.		Appelez-nous	-
24A	241681903		Actuator-ice,black   (Replaces: 5304422025)			Immediately	$ 83.64
30A	241688501		Door Center   (Replaces: 5304421624)				$ 52.97
30B	241688601		Insulation-door   (Replaces: 5304421625)				$ 63.17
30C	241688701		Door Seal   (Replaces: 5304421629)				$ 40.46
38A	5304430839		Harness-wiring		Appelez-nous	-
38A	241689106		Switch-micro,single Pole ,double Throw   (Replaces: 5304421617)			Immediately	$ 8.60
38C	5304525097		Switch   (Replaces: 5304436275)				$ 103.90
38C	241873301		Harness-wiring   (Replaces: 5304430837)				$ 11.15
87A	241688301		Bearing Plate   (Replaces: 5304421621)				$ 19.85
NI	218515401		Clip				$ 17.72
NI	218976901		Tube-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 81.50
NI	5303918256		Dispenser Heater Kit				$ 474.16
NI	218976903		Tube-water Inlet,inlet Valve ,to Filter				$ 70.16
NI	218976907		Tube-water Inlet,valve To Door				$ 67.73
NI	240561701		Seal-water Inlet,inlet Valve ,to Ice Maker			Immediately	$ 20.56
