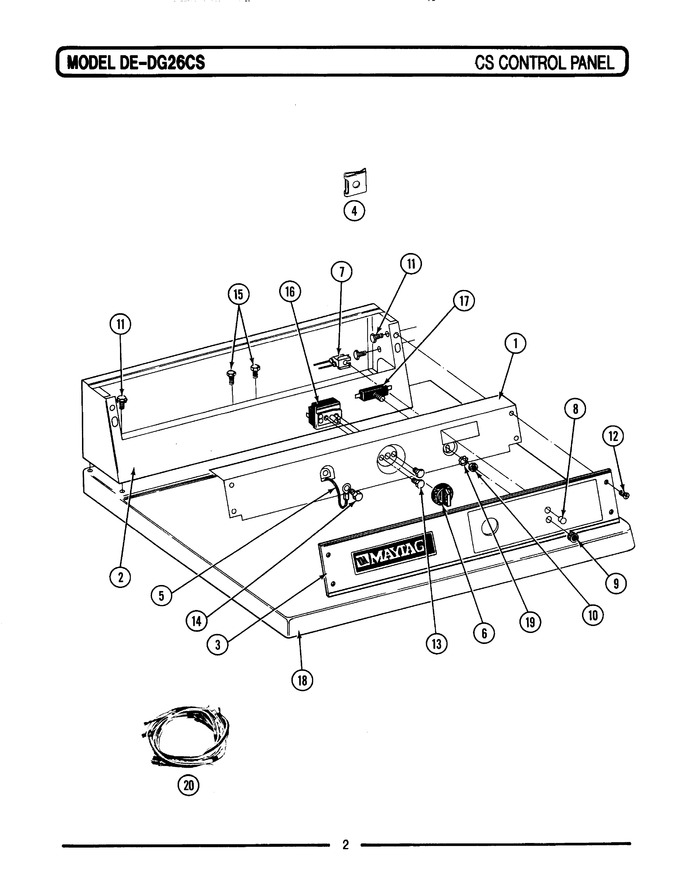

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	314912		Back-up Plate (wht)	00	Appelez-nous	-
001	NLA		(alm)	00	Appelez-nous	-
002	NLA		Control Cover (wht)	00	Appelez-nous	-
003	NLA		Control Panel	00	Appelez-nous	-
004	215003		Fastener	00	Appelez-nous	-
005	205810		Wire, Ground	00	Appelez-nous	-
006	306938		Knob, Selector Switch	00	Appelez-nous	-
007	204075		Part Not Used	00	Appelez-nous	-
007	Y305396		Indicator Lamp	00	Appelez-nous	-
008	WP215564		Lens, Indicator (amber)   (Replaces: 215564)	00		Immediately	$ 7.14
009	Y312702		Knurled Nut	00			$ 18.18
010	Y312706		Hex Nut, Switch	00	Appelez-nous	-
011	WP90767		Screw, Console (control Cntr)   (Replaces: 212276)	00		Immediately	$ 7.04
012	WP1163283		Screw, No.8 X 1/2 Inch   (Replaces: 212277)	00			$ 6.47
013	WP488234		Screw   (Replaces: Y313588)	00			$ 6.07
014	WP489399		Screw   (Replaces: 211252)	00			$ 6.26
015	Y314322		Part Not Used	00	Appelez-nous	-
015	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
016	WPW10327105		Switch, Cycle Selector   (Replaces: 307237)	00			$ 145.49
017	WPW10149462		Switch, Push-to-start   (Replaces: 306940)	00			$ 60.77
018	307105		Top Cover Assy. (wht)	00	Appelez-nous	-
018	NLA		(alm)	00	Appelez-nous	-
019	WPW10139799		Lock Washer   (Replaces: 312751)	00			$ 8.32
020	NLA		Main Wire Harness	00	Appelez-nous	-
020	307280		Wire Harness	00	Appelez-nous	-
