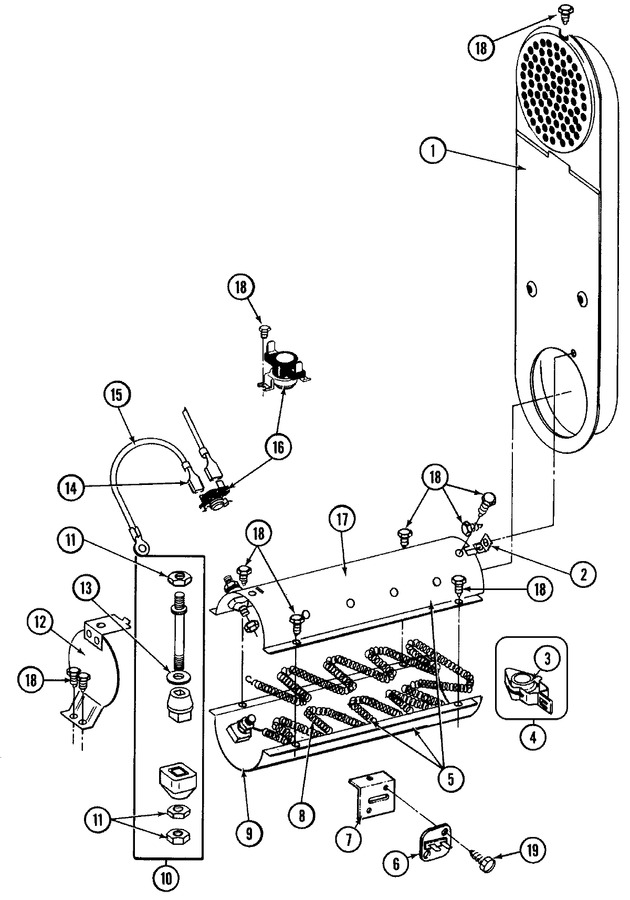

04 - Inlet Duct & Heater Assembly


05 - Inlet Duct & Heater Assembly (series A3)


06 - Installation Accessories


07 - Lint Screen, Tumbler (front & Back)


08 - Motor, Blower, Base Frame & Thermostats


09 - Rear View


10 - Thermostats


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	307120		Inlet Duct Assy.	00	Appelez-nous	-
2	Y312890		Retainer, Heater Chamber	00	Appelez-nous	-
3	Y313270		Insulator For Heater Elemen	00			$ 5.85
4	WPY303881		Clip And Insulator Assembly   (Replaces: Y303881)	00		Immediately	$ 19.79
5	Y303778		Heater Assembly Complete	00			$ 199.36
6	WP307473		Fuse, Thermal   (Replaces: 307473)	00		Immediately	$ 55.22
7	315046		Mounting Bracket	00	Appelez-nous	-
8	WPY313538		Heater Element 240 Volt   (Replaces: Y313538)	00		Immediately	$ 47.54
9	Y313576		Heater Chamber, Bottom	00	Appelez-nous	-
10	Y304596		Terminal Insulator Assembly	00		Immediately	$ 22.97
11	WP112432		Nut, Terminal Block   (Replaces: 311484)	00			$ 7.16
12	304124		Heater Shield	00	Appelez-nous	-
13	WP311093		Washer, 7/32 Inch   (Replaces: 311093)	00			$ 7.25
14	210745		Wire Terminal	00	Appelez-nous	-
15	WPY304693		Jumper Wire   (Replaces: Y304693)	00		Immediately	$ 6.47
16	WP303396		Thermostat, Hi-limit (elec)   (Replaces: 303396)	00		Immediately	$ 44.02
16	WP303896		Hi-limit Thermostat-canada   (Replaces: 303896)	00		Immediately	$ 66.12
17	Y313575		Heater Chamber, Top	00	Appelez-nous	-
18	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
19	WP90767		Screw   (Replaces: 314848)	00		Immediately	$ 7.04
