SELECT A DIAGRAM

01 - Cabinet-front

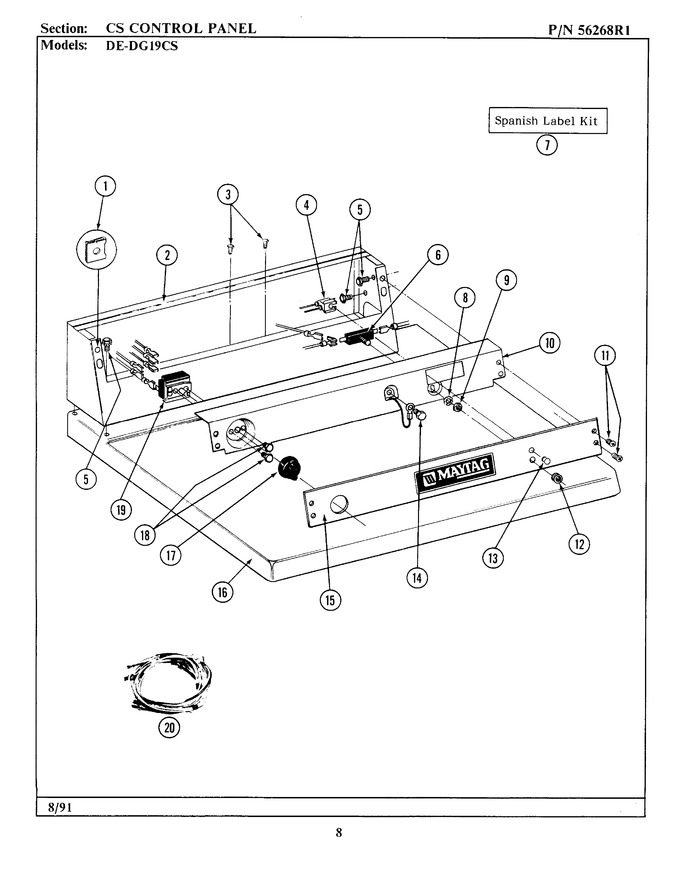

02 - Control Panel


03 - Tumbler


04 - Motor Drive


05 - Installation Accessories


06 - Control Center


07 - Control Center Case


08 - Control Center (series 02)


09 - Maytag Coin Slide-accessory


10 - Gas Valve


11 - 50hz Gas Valve


12 - Cabinet-rear


13 - Door


14 - 50hz Conversion List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	215003		Fastener	00	Appelez-nous	-
002	NLA		(alm)	00	Appelez-nous	-
002	305213		Console (wht)	00	Appelez-nous	-
003	Y314322		Screw, Power Cord	00	Appelez-nous	-
003	WP90767		Screw   (Replaces: 211294)	00		Immediately	$ 7.04
004	Y305396		Indicator Lamp	00	Appelez-nous	-
005	WP90767		Screw   (Replaces: 212276)	00		Immediately	$ 7.04
006	Y303204		Start Switch W/nuts	00	Appelez-nous	-
007	NLA		Label Kit, Spanish	00	Appelez-nous	-
008	WPW10139799		Lock Washer   (Replaces: 312751)	00			$ 8.32
009	Y312706		Hex Nut On Switch	00	Appelez-nous	-
010	NLA		Back Up Plate (wht)	00	Appelez-nous	-
012	Y312702		Knurled Nut	00			$ 18.18
013	213099		Lens, Control Panel	00	Appelez-nous	-
014	WP489399		Screw   (Replaces: 211252)	00			$ 6.26
015	NLA		Control Panel	00	Appelez-nous	-
016	NLA		(alm)	00	Appelez-nous	-
016	Y305191		Top Cover (wht)	00	Appelez-nous	-
017	205663		Knob, Selector Switch	00	Appelez-nous	-
018	WP488234		Screw   (Replaces: Y313588)	00			$ 6.07
019	Y303420		Selector Switch	00	Appelez-nous	-
020	NLA		Main Wire Harness	00	Appelez-nous	-
314	WP1163283		Screw, No.8 X 1/2 Inch   (Replaces: 212277)	00			$ 6.47

    View Diagram in Separate Window       Print Part List
