SELECT A DIAGRAM

01 - Front View


02 - Ca Control Panel


03 - Rear View


04 - Front Panel\door Assy.


05 - Lint Screen, Tumbler (front & Back)


06 - Inlet Duct, Gas Valve, Cone & Extension


07 - Motor, Blower, Base Frame & Thermostats

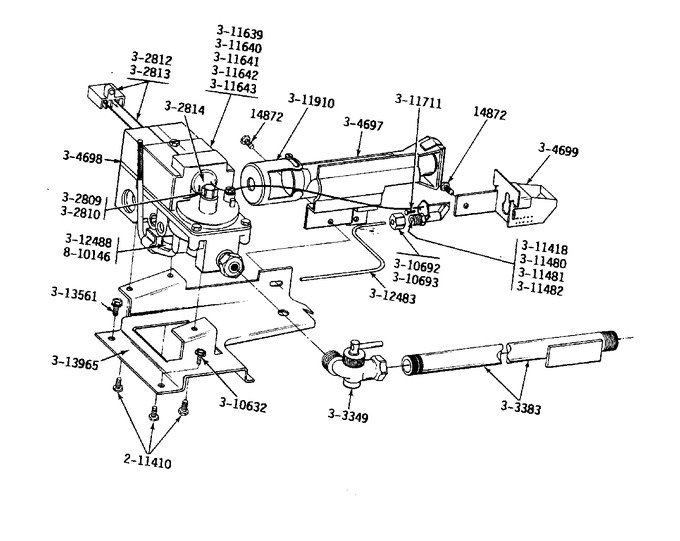

08 - 50hz Gas Valve


09 - 50hz Conversion List


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	Y014872		Screw, No.10 X 3/8	00	Appelez-nous	-
007	Y302812		Main Burner Solenoid	00	Appelez-nous	-
008	Y302813		Main Burn. Solenoid 230-50	00	Appelez-nous	-
010	Y303349		Shut-off, Gas Valve	00	Appelez-nous	-
011	Y303383		Pipe & Bracket Assy.	00	Appelez-nous	-
012	Y304697		Burner Assembly	00	Appelez-nous	-
013	Y304698		Gas Valve (240-50)	00	Appelez-nous	-
015	Y310632		Screw	00	Appelez-nous	-
016	310692		Compression Nut	00	Appelez-nous	-
017	Y310693		Compression Sleeve	00	Appelez-nous	-
018	Y311418		Pilot Orifice	00	Appelez-nous	-
019	Y311480		Pilot Orifice (lp)	00	Appelez-nous	-
021	Y311482		Pilot Orifice-lpg	00	Appelez-nous	-
022	Y311639		Orifice For Main Burner	00	Appelez-nous	-
027	Y311711		Screw	00	Appelez-nous	-
029	Y312483		Pilot Tube	00	Appelez-nous	-
031	Y313561		Screw----na	00			$ 5.27
NI	301539		Conversion Kit-lpg To Nat.	00	Appelez-nous	-
NI	NLA		Screw	00	Appelez-nous	-

    View Diagram in Separate Window       Print Part List
