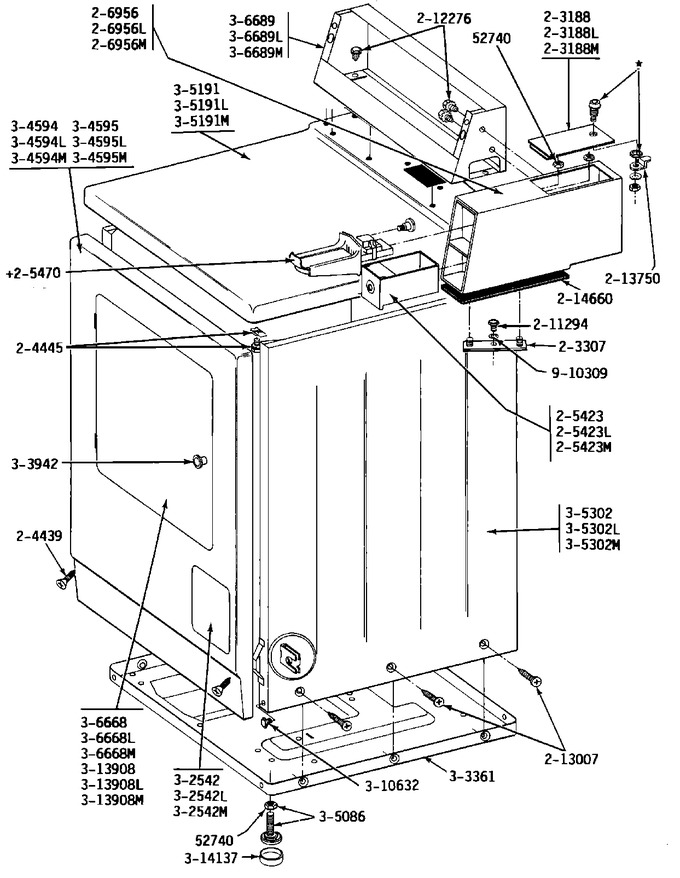

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP62739 | Nut (Replaces: Y052740) | 00 |
|
$ 6.85 | ||||
| 002 | 203188 | Door, Access (wht) | 00 |
|
- | ||||
| 003 | 203188L | Access Door-almond | 00 |
|
- | ||||
| 004 | 203188M | Access Door-harvest Wheat | 00 |
|
- | ||||
| 006 | 204439 | Screw & Fstner Assy(frt.panel) | 00 |
|
$ 8.80 | ||||
| 007 | 204445 | Screw & Fastener Asy. | 00 |
|
- | ||||
| 008 | 208883 | Coin Box-white (Replaces: 205423) | 00 |
|
- | ||||
| 009 | 208883 | Coin Box-almond (Replaces: 205423L) | 00 |
|
- | ||||
| 010 | 205423M | Coin Box-harvest Wheat | 00 |
|
- | ||||
| 012 | 206956 | Coin Meter Assy - White | 00 |
|
- | ||||
| 013 | 206956L | Coin Meter Assy - Almond | 00 |
|
- | ||||
| 014 | 206956M | Coin Meter Assy-harv Wheat--na | 00 |
|
- | ||||
| 015 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 016 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 017 | 213007 | Screw, Cabinet | 00 |
|
$ 10.99 | ||||
| 018 | W11165684 | Locking Cam (Replaces: 213750) | 00 |
|
$ 8.20 | ||||
| 019 | 214660 | Gasket, Meter Case | 00 |
|
- | ||||
| 023 | Y303361 | Base Assy. | 00 |
|
- | ||||
| 028 | WP233550 | Adjustable Leg & Nut (Replaces: Y305086) | 00 |
|
$ 7.16 | ||||
| 029 | Y305191 | Top Cover-white | 00 |
|
- | ||||
| 035 | Y306668 | Door | 00 |
|
- | ||||
| 041 | Y310632 | Screw | 00 |
|
- | ||||
| 042 | Y313908 | Door Panel-white | 00 |
|
- | ||||
| 045 | Y314137 | Foot, Rubber | 00 |
|
$ 14.08 | ||||
| 046 | 910309 | Washer | 00 |
|
- | ||||
| NI | NLA | Door Panel-harvest Wheat | 00 |
|
- |
