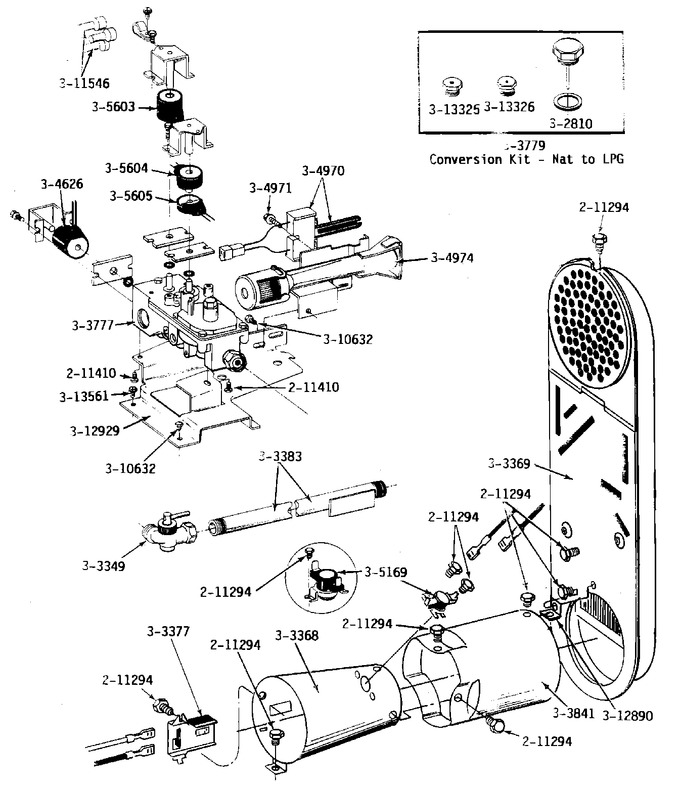

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 004 | Y303349 | Shut-off, Gas Valve | 00 |
|
- | ||||
| 005 | Y303368 | Cone, Combustion | 00 |
|
- | ||||
| 006 | Y303369 | Inlet Duct Assembly (dg) | 00 |
|
- | ||||
| 007 | WP338906 | Sensor, Radiant (Replaces: Y303377) | 00 |
|
Immediately | $ 46.72 | |||
| 008 | Y303383 | Pipe & Bracket Assy. | 00 |
|
- | ||||
| 009 | Y303777 | Gas Valve Assembly | 00 |
|
- | ||||
| 010 | Y303779 | Conversion Kit-nat. To Lpg | 00 |
|
- | ||||
| 011 | Y303841 | Cone, Extension (combustion) | 00 |
|
- | ||||
| 012 | Y304626 | Side Coil | 00 |
|
- | ||||
| 013 | 4391996 | Igniter Assy, Gas Valve (Replaces: 304970) | 00 |
|
Immediately | $ 42.36 | |||
| 014 | 304971 | Screw | 00 |
|
- | ||||
| 015 | WP33002793 | Burner Assembly (Replaces: 304974) | 00 |
|
$ 161.35 | ||||
| 016 | WP305169 | Thermostat, Hi-limit Gas (Replaces: 305169) | 00 |
|
$ 117.03 | ||||
| 017 | 305603 | Secondary Coil | 00 |
|
- | ||||
| 018 | 305604 | Holding Coil | 00 |
|
$ 57.03 | ||||
| 019 | WP305605 | Booster Coil (Replaces: 305605) | 00 |
|
$ 102.82 | ||||
| 022 | NLA | Orifice Kit, Lp (high Alt.) | 00 |
|
- | ||||
| 023 | Y310632 | Screw | 00 |
|
- | ||||
| 024 | 311546 | Closed Connector | 00 |
|
- | ||||
| 025 | Y312890 | Retainer, Heater Chamber | 00 |
|
- | ||||
| 028 | NLA | Internal Orifice - Lpg | 00 |
|
- | ||||
| NI | 312929 | Gas Valve Bracket | 00 |
|
- | ||||
| NI | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| NI | NLA | Main Burner Orifice - Lpg | 00 |
|
- |
