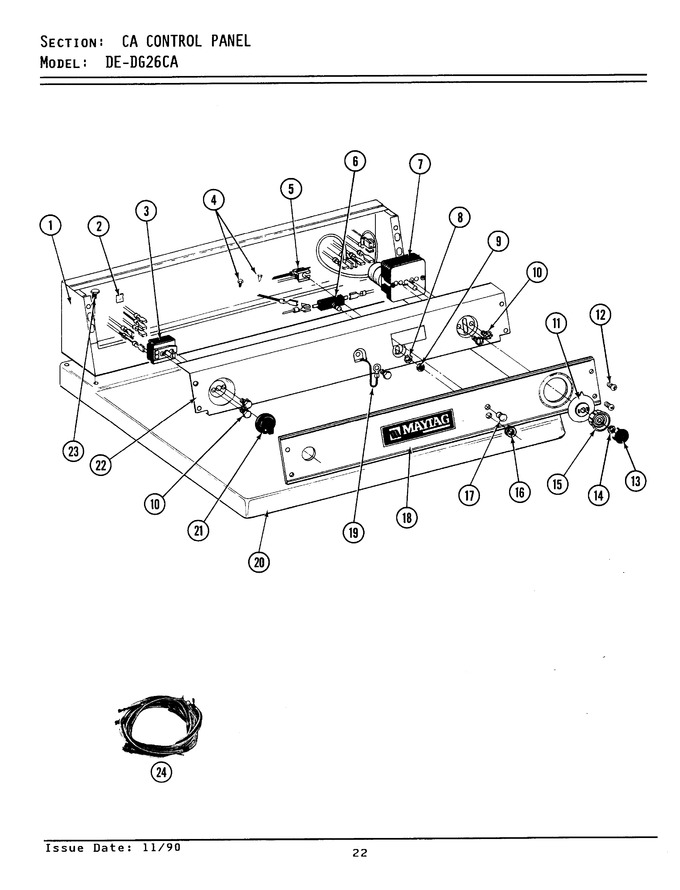

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 001 | NLA | (wht) | 00 |
|
- | ||||
| 002 | 215003 | Fastener | 00 |
|
- | ||||
| 003 | WPW10327105 | Switch, Cycle Selector (Replaces: 307237) | 00 |
|
$ 145.49 | ||||
| 004 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 004 | Y314322 | Screw, No.8-32 X 3/8 Inch | 00 |
|
- | ||||
| 005 | 204075 | Light, Indicator | 00 |
|
- | ||||
| 006 | WPW10149462 | Switch, Push-to-start (Replaces: 306940) | 00 |
|
$ 60.77 | ||||
| 007 | 305214 | Timer | 00 |
|
$ 152.65 | ||||
| 007 | 305215 | Timer | 00 |
|
- | ||||
| 007 | Y304585 | Timer Motor Rpr | 00 |
|
- | ||||
| 008 | WPW10139799 | Lock Washer (Replaces: 312751) | 00 |
|
$ 8.32 | ||||
| 009 | Y312706 | Hex Nut On Switch | 00 |
|
- | ||||
| 010 | WP488234 | Screw (Replaces: Y313588) | 00 |
|
$ 6.07 | ||||
| 011 | 314725 | Timer Dial Indicator | 00 |
|
- | ||||
| 012 | WP1163283 | Screw, No.8 X 1/2 Inch (Replaces: 212277) | 00 |
|
$ 6.47 | ||||
| 013 | WPW10133501 | Cap, Timer Knob (Replaces: 314723) | 00 |
|
$ 54.76 | ||||
| 014 | W10155650 | Nut (Replaces: 312273) | 00 |
|
$ 12.03 | ||||
| 015 | W11232017 | Knob, Timer (Replaces: 314724) | 00 |
|
$ 11.13 | ||||
| 016 | Y312702 | Knurled Nut | 00 |
|
$ 18.18 | ||||
| 017 | WP215564 | Lens, Indicator (amber) (Replaces: 215564) | 00 |
|
Immediately | $ 7.14 | |||
| 018 | 314909 | Control Panel Commercial Dryer | 00 |
|
- | ||||
| 019 | 205810 | Wire, Ground | 00 |
|
- | ||||
| 019 | WP489399 | Screw (Replaces: 211252) | 00 |
|
$ 6.26 | ||||
| 020 | 307104 | Top Cover Assy. (alm) | 00 |
|
- | ||||
| 020 | NLA | (alm) | 00 |
|
- | ||||
| 021 | 306938 | Knob, Selector Switch | 00 |
|
- | ||||
| 022 | NLA | Back-up Plate (white) | 00 |
|
- | ||||
| 023 | WP90767 | Screw (Replaces: 212276) | 00 |
|
Immediately | $ 7.04 | |||
| 024 | NLA | Wire Harness | 00 |
|
- |
