SELECT A DIAGRAM

Diagram for 01 - Control Panel
01 - Control Panel

Diagram for 02 - Control Center
02 - Control Center

Diagram for 03 - Maytag Coin Slide-accessory
03 - Maytag Coin Slide-accessory

Diagram for 04 - Front View
04 - Front View

Diagram for 05 - Rear View
05 - Rear View

Diagram for 06 - Front Panel & Door Assembly
06 - Front Panel & Door Assembly

Diagram for 07 - Lint Screen, Tumbler (front & Back)
07 - Lint Screen, Tumbler (front & Back)

Diagram for 08 - Motor, Blower, Base Frame & Thermostats
08 - Motor, Blower, Base Frame & Thermostats

Diagram for 09 - Installation Accessories
09 - Installation Accessories

Diagram for 10 - Inlet Duct, Gas Valve, Cone & Extension
10 - Inlet Duct, Gas Valve, Cone & Extension

Diagram for 11 - 50hz Gas Valve
11 - 50hz Gas Valve

No Diagram Image Available
12 - Conversion List


New Model Search:


1-888-572-4577
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
001 NLA Access Door W/decal (wht) 00 Appelez-nous -
002 WP233550 Adjustable Leg & Nut   (Replaces: Y305086) 00 Special Order $ 7.16

003 Y303361 Base Assy. 00 Appelez-nous -
004 NLA Cabinet (wht) 00 Appelez-nous -
005 205423M (h. Wheat) 00 Appelez-nous -
005 208883 Coin Box (wht)   (Replaces: 205423) 00 Appelez-nous -
005 208883 (alm)   (Replaces: 205423L) 00 Appelez-nous -
006 NLA Control Cover (wht) 00 Appelez-nous -
007 NLA (alm) 00 Appelez-nous -
007 Y307111 Door Assy. Complete (wht) 00 Appelez-nous -
008 NLA Front Panel (wht) 00 Appelez-nous -
008 307998L (alm) 00 Appelez-nous -
009 214660 Gasket, Meter Case 00 Appelez-nous -
010 NLA (h. Wheat) 00 Appelez-nous -
010 314946 Handle (wht) 00 Appelez-nous -
010 314972 (alm) 00 Appelez-nous -
011 WP62739 Nut   (Replaces: Y052740) 00 Special Order $ 6.85

012 W11165684 Locking Cam   (Replaces: 213750) 00 Special Order $ 8.20

013 NLA Mtg. Strap----na 00 Appelez-nous -
014 206956L (alm) 00 Appelez-nous -
014 206956 Coin Meter Assy (wht) 00 Appelez-nous -
014 206956M (h. Wheat) 00 Appelez-nous -
015 314966 Panel, Outer (wht) 00 Appelez-nous -
015 NLA (alm) 00 Appelez-nous -
016 Y314137 Foot, Rubber 00 Special Order $ 14.08

017 213007 Screw, Cabinet 00 Special Order $ 10.99

018 Y310632 Screw 00 Appelez-nous -
019 WP90767 Screw   (Replaces: 212276) 00 In-Stock Immediately $ 7.04

020 WP90767 Screw   (Replaces: 211294) 00 In-Stock Immediately $ 7.04

021 204439 Screw & Fstner Assy (ft. Pnl) 00 Special Order $ 8.80

022 204445 Screw & Fastener Asy. 00 Appelez-nous -
023 203188 Timer Access Door (wht) 00 Appelez-nous -
023 203188L (alm) 00 Appelez-nous -
023 203188M (h. Wheat) 00 Appelez-nous -
024 307105 Top Cover Assy. (wht) 00 Appelez-nous -
024 NLA (alm) 00 Appelez-nous -
025 910309 Washer 00 Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

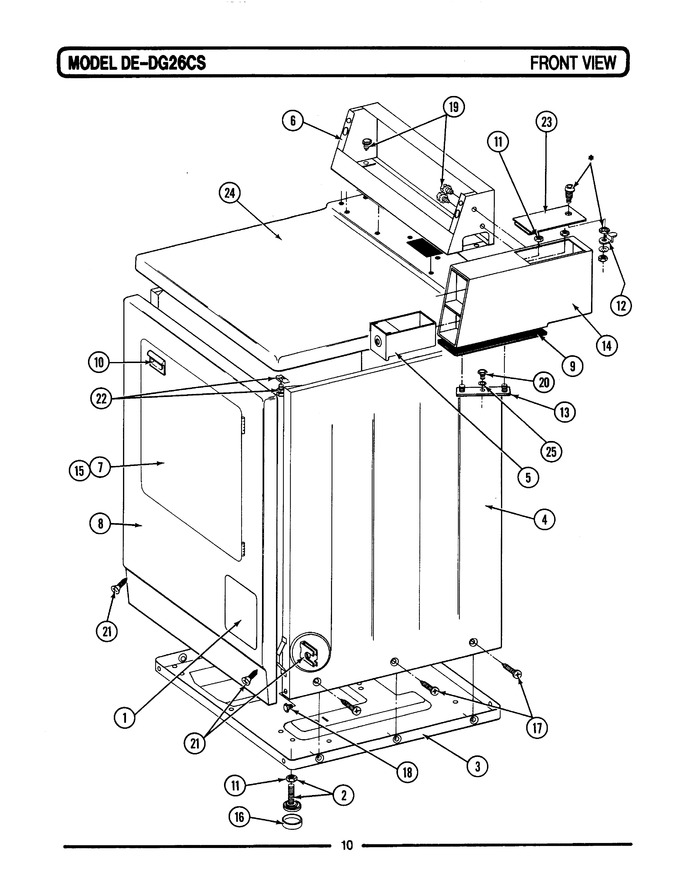

Diagram for GDG26CS
