02 - Backguard
03 - Body Parts
04 - Broiler Parts
05 - Drawer Parts
06 - Cooktop Parts
07 - Door Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|

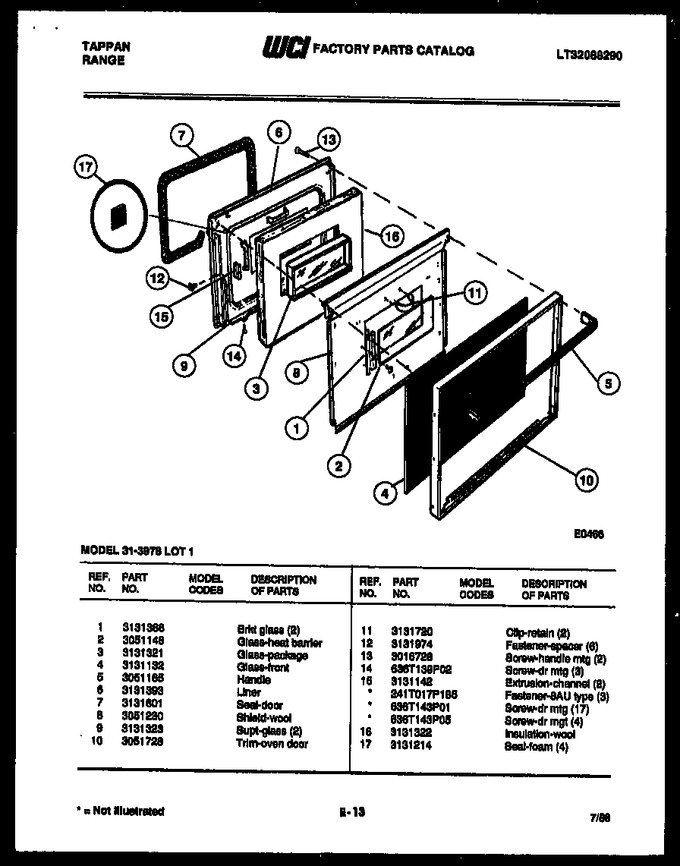

| 1 | 3131366 | Brkt Glass (2) |
|
- | |||||
| 2 | 3051148 | Glass, Heat Barrier |
|
- | |||||
| 3 | 3131321 | Glass, Package |
|
- | |||||
| 4 | 3131132 | Glass, Front |
|
- | |||||
| 5 | 3051165 | Handle |
|
- | |||||
| 6 | 3131393 | Liner |
|
- | |||||
| 7 | 3131601 | Seal, Door |
|
- | |||||
| 8 | 3051230 | Shield, Wool |
|
- | |||||
| 9 | 3131323 | Supt. Glass (2) |
|
- | |||||
| 10 | 3051728 | Trim, Oven Door |
|
- | |||||
| 11 | 3131720 | Clip-retain. (2) |
|
- | |||||
| 12 | 3131974 | Fastener, Spacer (6) |
|
- | |||||
| 13 | 3016728 | Screw-handle Mtg (2) |
|
- | |||||
| 14 | 636T139P02 | Screw-dr Mtg (3) |
|
- | |||||
| 15 | 3131142 | Extrusion Channel (2) |
|
- | |||||
| 16 | 3131322 | Insulation, Wool |
|
- | |||||
| 17 | 3131214 | Seal, Foam (4) |
|
- | |||||
| 15A | 241T017P185 | Fastener, 8 Au Type (3) (non-illustrated) |
|
- | |||||
| 15B | 636T143P01 | Screw |
|
- | |||||
| 15C | 636T143P05 | Screw-dr Mgt (4) (non-illustrated) |
|
- |
