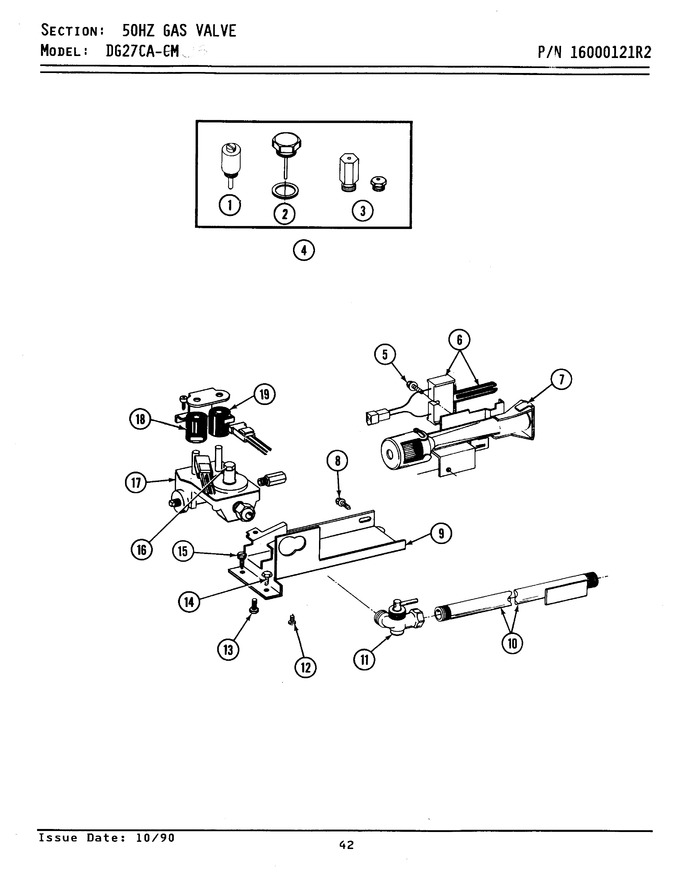

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
001	306184		Plug, Blocking (lpg Regulator)	00	Appelez-nous	-
002	NLA		Screw Assm - Blue Block Ope	00	Appelez-nous	-
003	NLA		Main Burner Orifice Kit-lpg	00	Appelez-nous	-
004	MAL9000AXX		Convers.kit (nat To Lp)----s   (Replaces: Y306195)	00			$ 72.26
005	304971		Screw	00	Appelez-nous	-
006	4391996		Igniter Assy, Gas Valve   (Replaces: 304970)	00		Immediately	$ 42.36
007	WP33002793		Burner Assembly   (Replaces: 304974)	00			$ 161.35
008	Y310632		Screw	00	Appelez-nous	-
009	314566		Bracket, Gas Valve	00	Appelez-nous	-
010	Y303383		Pipe & Bracket Assy.	00	Appelez-nous	-
011	Y303349		Shut-off, Gas Valve	00	Appelez-nous	-
012	WP90767		Screw   (Replaces: Y313559)	00		Immediately	$ 7.04
013	WP90767		Screw   (Replaces: 314082)	00		Immediately	$ 7.04
014	Y313561		Screw----na	00			$ 5.27
015	WP694424		Leak Limiter (lpg)   (Replaces: 314602)	00			$ 31.11
016	307927		Gas Valve - 120v-50hz	00			$ 215.29
017	WPY307931		Holding, Booster Coil   (Replaces: Y307931)	00			$ 104.11
018	WP307930		Secondary Coil   (Replaces: 307930)	00			$ 95.14

    View Diagram in Separate Window       Print Part List
