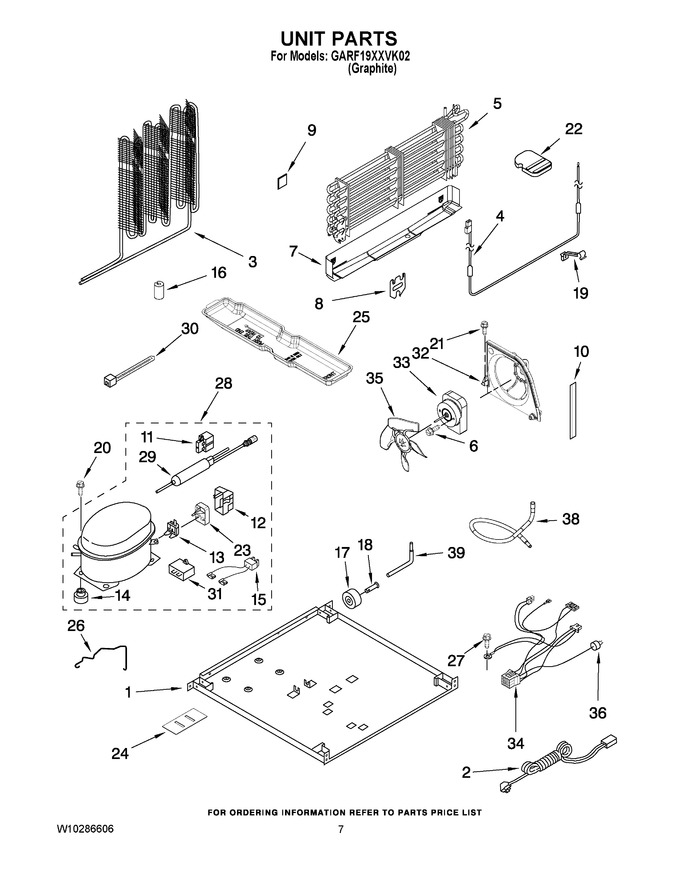

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 2320188 | Plate, Unit Mounting |
|
- | |||||
| 2 | 2187762 | Cord, Power |
|
- | |||||
| 3 | W10159808 | Condenser |
|
- | |||||
| 4 | WP2315531 | Heater, Defrost (Replaces: 2315531) |
|
$ 94.16 | |||||
| 5 | 2254250 | Evaporator Assy. |
|
$ 234.07 | |||||
| 6 | W11501418 | Screw (Replaces: 8533961) |
|
- | |||||
| 7 | 2254294 | Drain Pan |
|
- | |||||
| 8 | 2176301 | Bracket, Heater |
|
$ 6.37 | |||||
| 9 | W11553819 | Insulation, Sound Dampening (Replaces: 2169104) |
|
Immediately | $ 12.66 | ||||
| 10 | 2300638 | Extension, Air Baffle |
|
$ 52.69 | |||||
| 11 | 2183454 | Relay (service Only) |
|
- | |||||
| 12 | WP2162358 | Cover Service Only) (Replaces: 4387731) |
|
$ 81.68 | |||||
| 13 | WP2214067 | Overload (service Only) (Replaces: 4390624) |
|
$ 118.49 | |||||
| 14 | 876811 | Grommet (4) (production) (Replaces: 1100826) |
|
$ 6.68 | |||||
| 14 | WP4387558 | Grommet (4) (service) (Replaces: 4387558) |
|
$ 6.26 | |||||
| 15 | WP2172890 | Wire Assembly (service Only) (Replaces: 4387765) |
|
$ 7.29 | |||||
| 16 | W10852725 | Grommet, Cond (4) (Replaces: 2319835) |
|
$ 6.93 | |||||
| 17 | WPW10475495 | Roller (2) (Replaces: 2150304) |
|
Immediately | $ 28.85 | ||||
| 18 | W11594405 | Rivet (Replaces: 2179826) |
|
Immediately | $ 16.39 | ||||
| 19 | 2182338 | Clip, Heater |
|
$ 6.62 | |||||
| 20 | 876811 | Screw (Replaces: 489373) |
|
$ 6.68 | |||||
| 21 | 3400518 | Screw |
|
$ 11.68 | |||||
| 22 | 2201184 | Support Block |
|
$ 6.43 | |||||
| 23 | W10805623 | Start-device Combination (start Relay And Overload For Production (Replaces: W10249964) |
|
$ 113.97 | |||||
| 24 | 2254353 | Hole Cover |
|
- | |||||
| 25 | WP2254574 | Evaporator Tray (Replaces: 2254574) |
|
$ 157.37 | |||||
| 26 | 2212996 | Clip, Retaining (Replaces: 2255113) |
|
$ 10.90 | |||||
| 27 | WP489128 | Screw (Replaces: 488500) |
|
$ 9.79 | |||||
| 28 | W10285060 | Compressor (includes Items 11,12,13,14,15, 29 & 31) (also Order 482801 Installation Kit & 876765 Tube Kit) (Replaces: W10252075) |
|
$ 633.04 | |||||
| 29 | WPW10143759 | Drier (service) (Replaces: W10177049) |
|
Immediately | $ 27.70 | ||||
| 30 | WPW10339879 | Clamp (Replaces: 2155774) |
|
$ 7.11 | |||||
| 31 | WPW10662129 | Capacitor (production) (Replaces: 2264017) |
|
Immediately | $ 52.97 | ||||
| 31 | WPW10662129 | Capacitor (service) (Replaces: 1118576) |
|
Immediately | $ 52.97 | ||||
| 32 | WP2315541 | Air Baffle (Replaces: 2315541) |
|
Immediately | $ 75.42 | ||||
| 33 | WP2188874 | Motor, Condenser (Replaces: 2188874) |
|
Immediately | $ 102.56 | ||||
| 34 | W10140769 | Wire Assy. Unit (includes Item 36) |
|
- | |||||
| 35 | W11458267 | Fan Blade (Replaces: 2225834) |
|
Immediately | $ 21.59 | ||||
| 36 | W10140772 | Bi-metal |
|
$ 108.28 | |||||
| 38 | 2225237 | Tube, Suction Assembly |
|
$ 40.12 | |||||
| 39 | 2154109 | Tube, Process |
|
$ 65.37 | |||||
| NI | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 19.48 | |||||
| NI | 978028 | Valve, Access (1/2) |
|
- | |||||
| NI | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| NI | 978030 | Valve, Access (3/4``) |
|
$ 117.64 | |||||
| NI | 876764 | Valve, Access(3/16``) |
|
Immediately | $ 82.22 | ||||
| NI | N/P | Refrigerant Charge (4.00 Ozs. (r134a) |
|
- | |||||
| NI | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 94.73 | ||||
| NI | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 115.28 |
