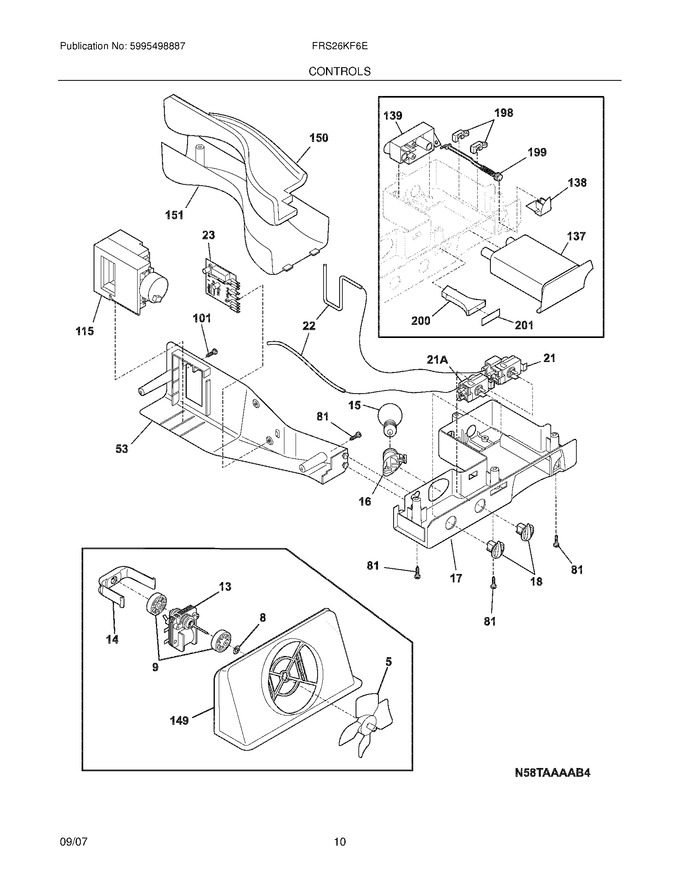

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
8	215474201		Washer,``slinger`` ,nylon ,evap Fan Shaft			Immediately	$ 18.43
9	241563601		Bushing-motor Mtg,(2)			Immediately	$ 17.72
13	5303918549		Motor-evap Fan   (Replaces: 240369702)			Immediately	$ 88.16
14	242135301		Clip,evap Fan Motor   (Replaces: 241517701)				$ 7.79
15	316538904		Light Bulb   (Replaces: 241555401)			Immediately	$ 20.48
16	218906802		Socket-light   (Replaces: 241513901)				$ 17.72
17	240317701		Box-control,front				$ 105.95
18	240360801		Knob-temp Control				$ 43.95
22	218660704		Tube,insulator ,plastic				$ 14.89
53	240369501		Box-control				$ 78.37
81	5304455650		Screw,hex Washer Head ,8-15a X 0.625 ,				$ 14.18
101	241637202		Screw,no.8ab X 1 3/4``				$ 5.31
115	241600906		Damper Assy,w/seal   (Replaces: 241600905)			Immediately	$ 200.84
137	WF2CB		Filter,water ,carbon Cassette ,front ,   (Replaces: 240396401)			Immediately	$ 108.24
138	240397301		Button-filter Release				$ 91.76
139	240396002		Base-water Filter			Immediately	$ 119.66
149	241563501		Shroud-fan Orfice		Appelez-nous	-
150	240394204		Insulation-water Tube Cover		Appelez-nous	-
151	240373806		Cover-water Tube				$ 101.06
198	240397401		Retainer				$ 59.54
199	240398401		Spring-filter Release Rod				$ 59.16
199	240397501		Rod				$ 55.57
200	240397601		Light Pipe				$ 76.65
201	240398501		Label-control Box		Appelez-nous	-
F137	242227702		Bypass,water Filter ,optional Part   (Replaces: 240396701)			Immediately	$ 73.16
F139	240527001		O-ring,wtr Filter Base   (Replaces: 240526901)				$ 10.62
F149	241528306		Seal,shroud		Appelez-nous	-
F21	241537104		Control-temperature   (Replaces: 241586501)			Immediately	$ 198.68
F21A	5304496561		Control-temperature,frzr Section   (Replaces: 5304421067)			Immediately	$ 141.37
F23	242011001		Control-defrost,adaptive Timer ,   (Replaces: 241736601)			Immediately	$ 159.31
F5	5308000010		Fan Blade,red ,evaporator Fan			Immediately	$ 49.03
NI	5304455649		Screw-timer Mtg,pan Hd ,6-20 X 0.438 ,				$ 17.01
NI	241735702		Harness-wiring,control Box				$ 80.27
NI	3205266		Edge Protector, Wiring Harness				$ 80.09
