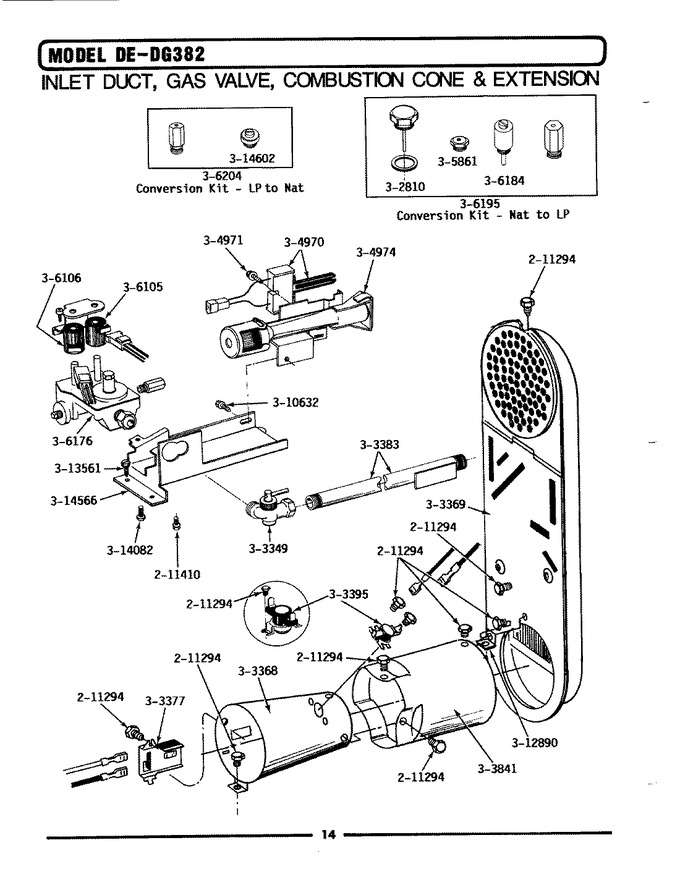

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP90767 | Screw (Replaces: 211294) | 00 |
|
Immediately | $ 7.04 | |||
| 2 | 211410 | Screw, Hex Hd No.8 X 3/8 Inch | 00 |
|
$ 6.64 | ||||
| 3 | 302810 | Screw Assm - Blue Block Ope | 00 |
|
- | ||||
| 4 | Y303349 | Shut-off, Gas Valve | 00 |
|
- | ||||
| 5 | Y303368 | Cone, Combustion | 00 |
|
- | ||||
| 6 | Y303369 | Inlet Duct Assembly (dg) | 00 |
|
- | ||||
| 7 | WP338906 | Sensor, Radiant (Replaces: Y303377) | 00 |
|
Immediately | $ 46.72 | |||
| 8 | Y303383 | Pipe & Bracket Assy. | 00 |
|
- | ||||
| 9 | WP303395 | Thermostat, Hi-limit (gas) (Replaces: 303395) | 00 |
|
Immediately | $ 66.35 | |||
| 10 | Y303841 | Cone, Extension (combustion) | 00 |
|
- | ||||
| 11 | 4391996 | Igniter Assy, Gas Valve (Replaces: 304970) | 00 |
|
Immediately | $ 42.36 | |||
| 12 | 304971 | Screw | 00 |
|
- | ||||
| 13 | WP33002793 | Burner Assembly (Replaces: 304974) | 00 |
|
$ 161.35 | ||||
| 14 | 305861 | Main Burner Orifice Kit-lpg | 00 |
|
- | ||||
| 15 | 279834 | Coil, Secondary (Replaces: 306105) | 00 |
|
Immediately | $ 29.57 | |||
| 16 | 58804A | Coil, Holding & Booster (Replaces: 306106) | 00 |
|
Immediately | $ 28.02 | |||
| 17 | WP306176 | Valve, Gas (Replaces: 306176) | 00 |
|
$ 335.71 | ||||
| 18 | 306184 | Plug, Blocking (lpg Regulator) | 00 |
|
- | ||||
| 19 | MAL9000AXX | Conversion Kit (natural To Lp) (Replaces: Y306195) | 00 |
|
$ 72.26 | ||||
| 20 | WP33002924 | Conversion Kit (lp To Natural) (Replaces: 306204) | 00 |
|
$ 100.25 | ||||
| 21 | Y310632 | Screw | 00 |
|
- | ||||
| 22 | Y312890 | Retainer, Heater Chamber | 00 |
|
- | ||||
| 23 | Y313561 | Screw----na | 00 |
|
$ 5.27 | ||||
| 24 | WP90767 | Screw (Replaces: 314082) | 00 |
|
Immediately | $ 7.04 | |||
| 25 | 314566 | Bracket, Gas Valve | 00 |
|
- | ||||
| 26 | WP694424 | Leak Limiter (lpg) (Replaces: 314602) | 00 |
|
$ 31.11 |
