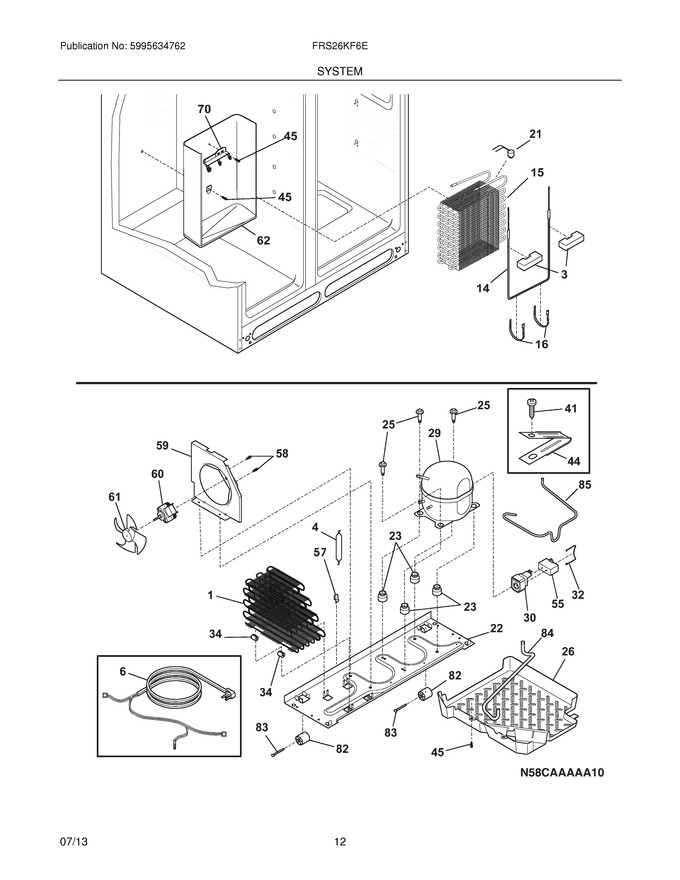

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 5304526057 | Condenser (Replaces: 240333603) |
|
$ 153.20 | |||||
| 3 | 218679614 | Block-evap Coil,styrofoam ,(2) (Replaces: 218679607) |
|
$ 19.85 | |||||
| 16 | 5308000110 | Strap-evap/heater,aluminum ,(2) |
|
Immediately | $ 59.82 | ||||
| 22 | 240330011 | Base-compressor Mtg |
|
$ 158.01 | |||||
| 23 | 218513300 | Grommet-compr Mtg,compressor ,(4) (Replaces: 241659701) |
|
$ 42.53 | |||||
| 25 | 240491503 | Screw-compressor Mtg,1/4-28 X 1.16 ,(4) |
|
$ 13.95 | |||||
| 26 | 241697603 | Pan-defrost (Replaces: 241697602) |
|
$ 79.22 | |||||
| 32 | 241650901 | Clamp,elec Cont Mtg ,compressor |
|
$ 11.34 | |||||
| 34 | 240405201 | Grommet,rubber ,black ,cond Tube/wire |
|
$ 19.85 | |||||
| 41 | 240555002 | Screw-no.8-32 X 3/8 |
|
Immediately | $ 13.46 | ||||
| 44 | 215174700 | Clamp-service Cord, Strain Relief, Galv Steel |
|
- | |||||
| 45 | 5304455650 | Screw,hex Washer Head ,8-15a X 0.625 ,low Profile |
|
$ 14.18 | |||||
| 55 | 5304464438 | Capacitor-run,220 Vac ,15 Microfarad (Replaces: 218909913) |
|
Immediately | $ 35.38 | ||||
| 57 | 240542601 | Clip-wiring Harness |
|
- | |||||
| 58 | 240555002 | Screw,hex Washer Head ,8-32 X 0.375 (Replaces: 218897004) |
|
Immediately | $ 13.46 | ||||
| 59 | 5303918774 | Shroud-cond Fan (Replaces: 241681101) |
|
Immediately | $ 186.30 | ||||
| 62 | 5304481642 | Trough-drain (Replaces: 240429402) |
|
$ 327.07 | |||||
| 70 | 218990801 | Bracket-evap/cvr Mtg |
|
$ 63.79 | |||||
| 82 | 5304418225 | Roller,compressor Base ,rear ,(2) |
|
$ 51.57 | |||||
| 83 | 5304455655 | Rivet,flat Head ,1/4 Od X 1-3/4 ,roller Pin |
|
Immediately | $ 35.34 | ||||
| 84 | 241957901 | Tube-drain,lower |
|
$ 60.96 | |||||
| 85 | 241856901 | Tube-connector,suction |
|
$ 78.11 | |||||
| F14 | 242044113 | Heater-defrost (Replaces: 240316107) |
|
Immediately | $ 103.72 | ||||
| F15 | 5303918284 | Evaporator Kit |
|
$ 481.01 | |||||
| F21 | 5303918214 | Thermostat-defrost,kit |
|
Immediately | $ 33.42 | ||||
| F29 | 5304475098 | Compressor Kit (Replaces: 5303918356) |
|
$ 496.13 | |||||
| F30 | 241707712 | Starter,ptc |
|
$ 77.97 | |||||
| F4 | 5303305677 | Dryer-filter,r134a System (Replaces: 218944001) |
|
Immediately | $ 31.67 | ||||
| F6 | 241586801 | Harness-wiring,machine Compt ,w/diodes |
|
$ 177.08 | |||||
| F60 | 241696606 | Motor-condenser Fan (Replaces: 241696602) |
|
Immediately | $ 183.81 | ||||
| F61 | 240524102 | Fan Blade,galv Steel ,condenser Fan (Replaces: 240524101) |
|
Immediately | $ 39.43 | ||||
| FNI | 5303918328 | Heat Exchanger Kit,suction Line ,service |
|
$ 367.18 | |||||
| FNI | 241651601 | Harness-wiring,evaporator |
|
$ 122.06 | |||||
| NI | 241537804 | Harness-wiring,control Box |
|
$ 65.73 | |||||
| NI | 241941202 | Screw,hex Washer Head ,8-18 X 5/16 (Replaces: 240433204) |
|
$ 15.17 | |||||
| NI | 240359403 | Screw-fan Shroud,(2) |
|
$ 3.79 | |||||
| NI | 240346701 | Tape-foam Seal,shroud |
|
$ 29.77 | |||||
| NI | 218252201 | Screw,no.8 Truss Hd ,10-32ca X 0.500 |
|
Immediately | $ 14.18 | ||||
| NI | 5303918222 | Hot Tube Repair Kit,service |
|
$ 418.12 |
